Waterproofing ICF Foundations: Two Steps Forward, Three Steps Back
Article by David Campbell, RWC, AIA
Read the full article (PDF)Background on this topic from Inspec

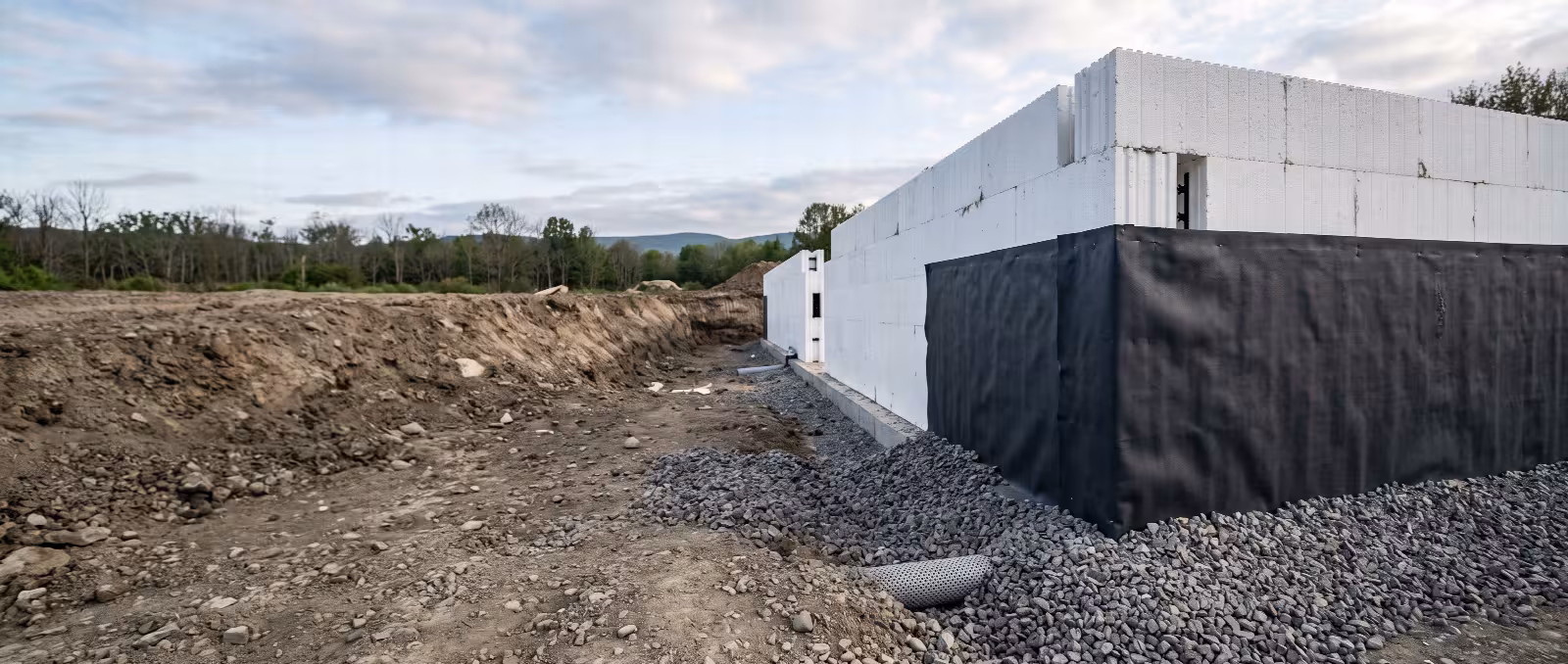

Insulated Concrete Form (ICF) foundations offer energy efficiency, but can create major waterproofing challenges when used below grade. This article explores the hidden risks, real-world consequences, and how to approach ICF foundation waterproofing the right way.
The trade every ICF foundation makes
Insulated concrete forms give a foundation wall continuous insulation on both faces, a reinforced concrete core and a fast, forgiving placement sequence. Those are real gains. The step backward is that the exterior face of the wall — the face that has to carry the waterproofing and then survive backfill — is no longer concrete. It is expanded polystyrene with plastic web flanges in it, and almost everything that below-grade waterproofing assumes about its substrate has quietly changed.
None of this makes ICF a bad choice below grade. It makes the waterproofing a design decision rather than a default. The general principles that govern any buried assembly still apply, and they are covered in Waterproofing is Not Below-Grade Roofing. What follows is what changes when the substrate is foam.
Compatibility: what the foam will and will not tolerate
Polystyrene is dissolved by many solvents and deformed by heat. That rules out or restricts a long list of products that are routine on cast concrete:
- Solvent-based primers, adhesives and mastics. A primer that flashes off harmlessly on concrete can etch or collapse the foam face it is brushed onto, leaving a soft, pitted bond surface under the membrane.
- Hot-applied products. Hot rubberized asphalt and torch-applied sheets have no place directly on foam. Substituting them for a cold-applied specified product during construction is a substitution that must be caught before it happens.
- Fluid-applied membranes that need a rigid, dimensionally stable substrate. Foam moves, dents and telegraphs its form seams. A coating cured over that face inherits every irregularity.
The manufacturer's written approval for use over the specific ICF product is the governing document here, not general familiarity with the membrane. Warranty language often narrows further than the data sheet does, and the two are worth reading side by side before the submittal is approved.
Adhesion is the second half of the compatibility question. Self-adhered sheets bond to the foam skin, and the foam skin's bond to the concrete behind it becomes the weak link in the assembly. Some systems sidestep this by not relying on adhesion at all — bentonite panels and other confinement-dependent products are placed rather than bonded, though they bring their own conditions. Our discussion of one such family of materials is in An Assessment of Polymer Gel Waterproofing.
You cannot inspect the concrete you are depending on
On a conventionally formed wall, stripping the forms is also an inspection. Honeycombing, cold joints, tie holes, form blowouts and rock pockets are visible and get repaired before anything is applied over them. On an ICF wall, the forms stay. The concrete core is permanently hidden on both faces.
That matters because the waterproofing on the outside of the foam is not the only barrier being counted on — the concrete core is a barrier too, and nobody has looked at it. A consolidation void behind the foam becomes a lateral flow path that will never be found from the outside. Placement observation, vibration practice and lift heights are therefore waterproofing issues on an ICF job, not just structural ones.
Hidden lateral leakage
This is the characteristic ICF failure. When water gets past a membrane defect, it does not arrive at the foam and stop. It runs down and across the interface between the foam and the concrete, follows web flanges and form joints, and appears at the interior at whatever penetration, tie hole or slab edge happens to give it an opening — often a considerable distance from the actual breach.
The consequences are practical. Interior evidence is a poor indicator of exterior source. Spot excavation guided by the wet spot frequently exposes sound membrane. Repair from the inside seals the exit and moves the water somewhere else. Sourcing this kind of leak takes the same discipline described in our article on replicating and sourcing leaks — replication and elimination, not inference from where the stain is.
Backfill is the other half of the problem
Foam is soft. A membrane applied over it is only as protected as the layer outside it, and the usual damage happens in a few hours with a machine bucket and unscreened backfill. Angular fill, frozen lumps, construction debris and equipment tracking against the wall all dent the foam, and a dented foam face stretches or tears the membrane bonded to it.
- Protection board and drainage composite are not optional accessories on ICF; they are the reason the membrane survives to be buried.
- Backfill material, lift height and compaction method belong in the specification, and the wall needs to be braced and cured for it.
- Foam left exposed above grade degrades in sunlight and needs a finish and a proper termination, not just a smear of coating.
Drainage deserves its own sentence: ICF insulates the wall, it does not relieve hydrostatic pressure. Footing drains, a free-draining path down the wall and a functioning outlet are as necessary here as on any other foundation.
The details that decide the outcome
- Footing-to-wall cove. The membrane has to transition from a concrete footing to a foam wall face across a joint that is frequently the leak path. Reinforcement, sequencing and the terminating material all change at that inch.
- Form seams and web locations. These are the lateral pathways. They should be identified, not ignored, and treated where the membrane crosses them.
- Penetrations. Sleeves through foam have no rigid collar to seal against. Blocking or a concrete boot detail usually has to be designed in before the pour.
- Brick ledges and steps in the wall. Horizontal surfaces below grade collect water and are where a foam substrate is least forgiving.
- Grade-level termination. Where the buried system stops and the above-grade water-resistive barrier begins is a transition between two trades and two products, and it is often drawn by neither.
Details like these are why the design phase carries so much weight on ICF work; the broader case is made in Design Issues: The Devil in the Details.
Where an independent consultant fits
The window for getting an ICF foundation right is short and closes at backfill. Useful involvement includes reviewing the specified system against the ICF manufacturer's written acceptance, drawing the footing, penetration and grade terminations, reviewing substitutions, and being on site while the membrane and protection course go on and while the wall is backfilled. Once the excavation is closed, every correction is an excavation.
Inspec provides below-grade waterproofing design and investigation and construction observation as consulting engineers and architects; we do not perform the installation, which keeps the review independent of the work being reviewed. If you have an ICF foundation in design or one that is already wet, contact us from our Chicago, Milwaukee or Minneapolis offices.
