Design Issues: The Devil in the Details

Background on this topic from Inspec

Building envelope consultants often face unexpected challenges during design and restoration. This article explores how overlooked details can cause system failures and outlines why due diligence and field investigation are critical to long-term success.

Most design issues are undecided transitions

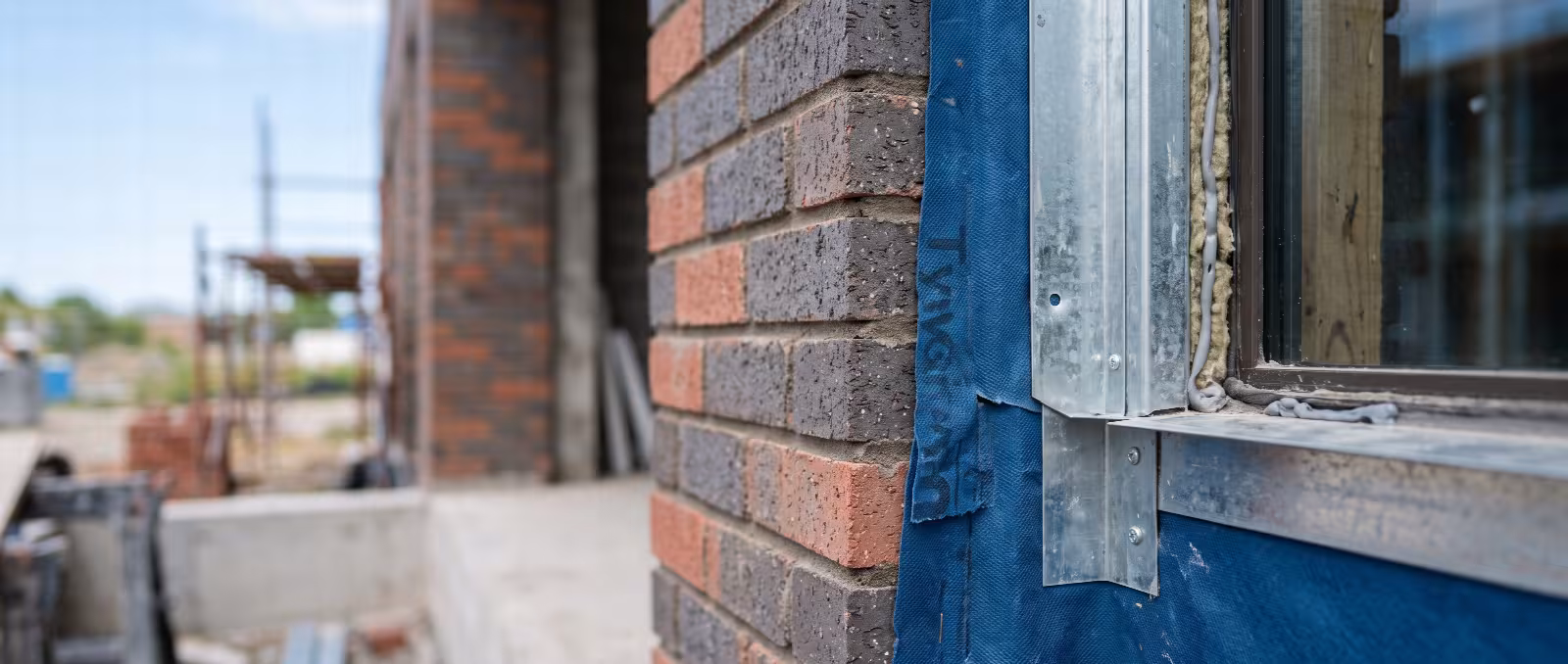

A detail is a decision: where an assembly ends, what carries through to the next one, what that connection bonds to, and which trade is holding the roll when it happens. Wall to roof. Wall to window. Wall to foundation. Cladding to a sealant joint. Air barrier to a door frame.

When the decision is not recorded on the drawings, it still gets made — on the scaffold, by whoever reaches the transition first, with whatever material is on the truck that morning. Building envelope design issues are, more often than not, deferred decisions rather than drawn mistakes, and they are far cheaper to resolve while the drawing is still a drawing.

Where details break down on paper

The transition that was never drawn

A set can be thorough through the typical wall section and thin at the conditions that decide performance. A note reading "seal continuous" or "flash as required" is not a detail; it is an instruction to improvise. The same applies to scope marked "by others" at precisely the point where two contracts have to overlap — a line on a drawing that describes a gap in responsibility rather than a connection between materials.

The substrate that does not exist

On renovation and restoration work, a detail is often drawn against the wall shown on the original documents. The wall that is actually standing there may have a different backup, an abandoned coating, infilled openings or earlier repairs hidden behind the cladding. Exploratory openings and field verification of the existing assembly, whether during a facility condition assessment or during design, tell you what the new flashing has to bond to before anyone draws it.

Details that end where the drawing ends

Sections get cut through the easy part of the wall. Problems collect at the ends of runs: outside and inside corners, sill ends, parapet returns, the point where a horizontal transition meets a vertical one. A connection that reads cleanly in section can be geometrically impossible where three planes meet, and that is usually discovered with a utility knife at seven in the morning. The question to ask of any detail is what happens fifty millimetres past the edge of the page.

Details that ignore movement

Enclosures move — thermally, seasonally, and differentially where dissimilar materials meet or where cladding is supported by a structure with its own deflection. A joint that is detailed without regard to the movement it will see, or a transition membrane stretched tight across two components that move independently, fails in a pattern that looks like workmanship and is not. Expansion joints in particular have to be carried through every layer, not just through the finish.

Details that ignore sequence and access

A detail can be correct and still unbuildable. If a lap can only be completed after the framing is closed in, or a flashing can only be installed from a face that will be inaccessible by then, the drawing describes a condition nobody can produce. Sequence and reach belong in the detail, not only in the schedule.

Sealant asked to carry the whole load

Sealant is a legitimate part of many transitions and a poor sole line of defense. Details that depend on a single exposed bead — no drainage path, no back-up seal, no way to manage water that gets past it — commit the owner to a maintenance cycle nobody discussed. Window perimeters are a frequent example, as covered in our article on window receptors.

Thermal and vapor consequences left unverified

Insulation moved outboard, a vapor retarder placed by habit rather than analysis, or a steel element bridging the thermal layer can all produce condensation inside an assembly that looks correct in section. Where the assembly is unusual, the climate is demanding or the interior is humid, hygrothermal modeling tests the question before it is built.

Details that fall between two scopes

Roofing, cladding, glazing, below-grade waterproofing and landscape work are often designed by different parties. Each may detail its own system correctly and stop at the boundary. The roof-to-wall junction, the plaza-to-building edge and the curtain wall head are where those boundaries meet, and they need one party responsible for drawing both sides of the connection.

When the drawings and the specifications disagree

Details and specifications are typically produced at different times by different hands. A drawing may show a self-adhered flashing where the specification calls for a fluid-applied product; a section may rely on a substrate the specification never mentions; a specification may require a compatibility or adhesion test that no detail leaves room for. Contractors resolve these conflicts on their own terms, and the resolution rarely favors long-term performance. Reading the two documents against each other is unglamorous work that catches a surprising number of problems.

How a detail review proceeds

The review is a tracing exercise before it is anything else. Follow the water-shedding surface around the enclosure in section and in plan, then do the same for the air barrier and the thermal layer, and mark every point where a line stops. Those stops are the agenda. From there the questions are practical: what material makes the connection, what is it adhered or fastened to, is it compatible with what it touches, who installs it and in what order, where does water that gets behind it go, and how will anyone inspect or maintain it in ten years.

Inspec provides this work as part of building enclosure design services, and our building enclosure design consultants also work alongside architects carrying the rest of the design.

Confirming the detail survives construction

A resolved detail is half the outcome. Substitutions, missed laps and rushed terminations can undo the drawing, which is why construction observation, mock-ups and air and water infiltration testing belong at the same transitions the review flagged. Where an owner wants that chain documented end to end, building envelope commissioning is the vehicle for it.

If a set of drawings is in progress, or a set already out for bid needs a second pair of eyes on its transitions, contact Inspec to discuss a review.
