An Assessment of Polymer Gel Waterproofing

Background on this topic from Inspec

Polymer gel waterproofing offers unique performance benefits for long-term protection, including self-healing, elasticity, and strong substrate adhesion. In this assessment, we break down its real-world advantages and limitations to help you determine if it's the right fit for your next below-grade project.

What polymer gel waterproofing is

Polymer gel waterproofing is a remedial injection method. Two liquid components — a resin and an initiator or catalyst — are pumped through a mixing head and injected through ports drilled into a below-grade wall or slab. The mixed liquid has a viscosity close to water, so it travels into hairline cracks, cold joints, honeycombed concrete and the soil pores immediately behind the structure. After a controlled interval it converts to a flexible, rubbery gel.

The gel is a water barrier, not an adhesive and not a structural material. It seals a leakage path. It does not restore the tensile capacity of cracked concrete, does not replace lost section, and does not bond two sides of a moving joint together. Any proposal that treats injection as a structural repair is describing a different material and a different scope.

Two placement strategies, often confused

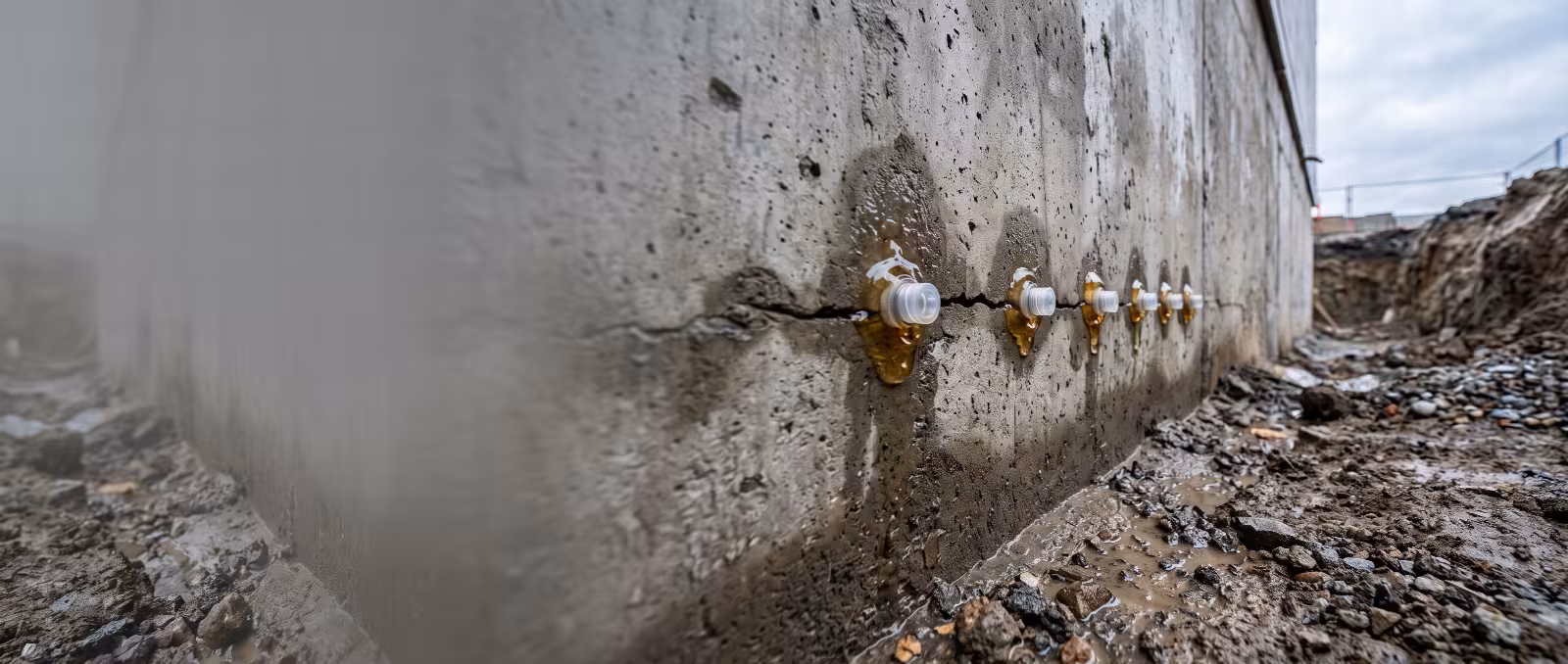

The first strategy injects gel into the defect itself — a crack, a construction joint, a tie-rod hole, an annular space at a pipe penetration. The target has definable walls, the material volume is bounded, and returns at adjacent ports tell you something useful about where the grout went.

The second, usually called curtain grouting, drills through the wall and injects into the soil on the exterior side to build a gel mass against the outside face. This is what makes the method attractive when excavation is impossible, and it is also where most of the uncertainty lives: the thing being grouted is backfill nobody has seen since the building went up.

The two are priced, specified and verified differently. Confusing them is how an owner ends up paying for a curtain and receiving a series of crack repairs, or the reverse.

Where injected gel performs

• Occupied and obstructed sites. Where a wall is buried under a plaza, a parking structure, an adjacent building, or mature landscape, injection reaches the negative side of the problem from inside.
• Discrete, identifiable leakage paths. Single cracks, construction joints, penetrations and tie-back locations respond well when the entry point has actually been traced.
• Wet conditions. These products are water-based and hydrophilic by design, so an active flow is not disqualifying the way it is for some coatings and resin systems.
• Consistently saturated soil. Below the water table, or in soil that stays damp year round, a gel mass has the conditions it needs to stay stable.
• Movement tolerance. The cured gel stays flexible, which suits joints and cracks that see small seasonal or thermal movement.

Where polymer gel waterproofing falls short

It depends on staying wet. Water-based gels lose volume when the surrounding soil dries out. In a wall section above the water table, in free-draining granular backfill, or against a face that dries seasonally, a gel curtain can shrink and reopen the path it sealed. Freeze exposure at shallow depth is a further concern.

You are grouting a medium you cannot see. Fill behind an old foundation wall is rarely uniform. Rubble, voids, abandoned drainage stone and utility trenches all accept grout enthusiastically and produce a curtain with gaps in it. Volume placed is not the same as coverage achieved.

It leaves the wall wet. Stopping liquid water at the exterior face does not dry the concrete. Vapor drive continues, and interior finishes, adhesives and stored materials installed against a still-damp wall will keep failing. This is why gel injection is a component of a repair, not the whole of one.

It can conceal deterioration. Water reaching the interior through a crack is a symptom. If the underlying cause is corroding reinforcement, structural cracking, a failed drain tile system or surface water that was never directed away from the building, sealing the exit point removes the evidence and leaves the mechanism running.

Pressure is a hazard. Injection at inappropriate pressures can displace slabs, lift flatwork, widen cracks, or migrate grout into drains, elevator pits and adjacent tenant spaces. Pressure limits and refusal criteria belong in the specification, not in the operator's judgement.

What we establish before specifying gel

The first question is never which product. It is where the water is coming from and why. Groundwater under head, perched water on a clay lens, roof drainage discharging at the foundation, irrigation, a leaking service line and condensation all present as a wet basement wall and none of them are corrected by the same repair. Our approach to tracing water to its actual entry point is described in our discussion of leak replication and sourcing, and the supporting field work is covered under moisture intrusion analysis.

From there we look at:

• Water table position relative to the leak. This is the single strongest predictor of whether a gel curtain will remain stable.
• Backfill character. Native clay, engineered fill, rubble or drainage stone each change how — and whether — grout will form a continuous mass.
• Substrate condition. Sound concrete, delamination, reinforcement corrosion, active structural movement. A moving crack needs the movement addressed, not gel.
• What the original waterproofing was, and whether any of it remains.
• Drainage. Grade, downspout discharge, footing drains and sump capacity are often the cheaper half of the fix.
• The end use of the space. An archive, a data room or finished residential space sets a far higher bar than a mechanical room.

Injected gel is one option on a list that includes exterior excavation and membrane replacement, interior drainage and management systems, crystalline treatments, joint replacement and drainage correction. The comparison belongs in a report, with the trade-offs stated, before anyone drills a port. Our broader position on how below-grade assemblies differ from roofing assemblies is set out in Waterproofing is Not Below-Grade Roofing, and a related look at what happens when the original system was compromised during construction appears in Waterproofing ICF Foundations.

Specifying and observing the work

If gel injection is the right call, the specification should carry the decisions rather than leave them to the crew on site: product type and its published behavior in the exposure present, gel time, port spacing and drill depth and angle, injection sequence, maximum pressure, refusal criteria, and what happens where grout returns at an adjacent port or does not return at all.

Because the finished work is invisible, the record is the deliverable. Injection logs by port, volumes placed against volumes anticipated, pressures, observed returns, and photographs of conditions before closure give the owner something to evaluate later. Post-injection performance is confirmed by observing the wall through wetting events rather than by accepting the work the day the pump shuts off. This is the role of construction observation on an injection project.

We inspect, test, investigate, design and advise; we do not perform the injection. That separation is the point — the party writing the acceptance criteria has no interest in the volume of grout placed.

Getting an assessment

If a below-grade wall is leaking and injection has been proposed, an independent evaluation of the water source, the backfill and the substrate will tell you whether gel is a durable answer or a delay. See our below-grade waterproofing and waterproofing consulting pages, or contact us to discuss the condition. We work from offices in Chicago, Milwaukee and Minneapolis.
