The Art Of Replicating And Sourcing Leaks To The Interior Of Buildings; Engineered Doctrine Or Applied Fundamentals

Background on this topic from Inspec

Diagnosing building envelope leaks takes more than following a test standard. In many cases, it relies on experience, observation, and practical thinking. This article explores real-world techniques for replicating and sourcing interior leaks—without needing expensive equipment or rigid test protocols.

The stain is evidence, not an address

Water that shows up on a ceiling tile, at the head of a window or along a base of wall has almost always traveled before it arrived. It moves down sheathing, along the underside of a slab, across a shelf angle, through a stud cavity and out at the first interruption in the interior finish. The point of entry through the exterior enclosure and the point of appearance inside the building are two different locations, and the distance between them is unknown at the start of the investigation.

That single fact is what makes building envelope leak diagnosis a discipline rather than an errand. The task is not to find wet material. The task is to prove which opening in the enclosure admitted the water, and to prove it in a way that survives a contractor's skepticism, an insurer's review and, occasionally, a courtroom.

Engineered doctrine and applied fundamentals

Two habits of mind pull against each other in this work, and both are necessary.

Doctrine is the body of knowledge about how enclosures are supposed to behave: where the drainage plane is meant to sit, how flashing is supposed to lap, what a properly executed transition between a wall and a roof looks like, how pressure differences drive water through a joint that gravity alone would never defeat. Doctrine tells the investigator where the vulnerable geometry is before anyone opens a hose bib.

Applied fundamentals are what happens on the wall in front of you. Water runs downhill. It follows the path of least resistance. It moves through a hole only when there is an opening, water present at that opening and a force to move it. Any one of those three can be removed and the leak stops. Every diagnosis, however elaborate, resolves back to those fundamentals.

Doctrine without field verification produces confident conclusions about the wrong detail. Field observation without doctrine produces a list of wet spots and no explanation. The investigation has to carry both.

Building the hypothesis before the water starts

Testing is expensive in time, access and disruption, so the sequence begins with reasoning rather than spraying.

Occurrence pattern. Does the leak appear during wind-driven rain from one direction, during any rain, during snowmelt, or independent of weather altogether? Weather-independent water is rarely an enclosure leak.
Original construction. Drawings, shop drawings and specifications show what the transitions were meant to be. The difference between the drawn detail and the built condition is frequently the answer.
Repair history. Sealant campaigns, coatings and prior patches change the drainage behavior of an assembly and often relocate a leak rather than end it.
Visual survey. Reversed laps, terminated flashing, unsealed penetrations, cracked masonry, failed joints and blocked weeps are candidate entries, and each candidate carries a prediction about where water would appear inside.

The product of this stage is a ranked list of suspected entry points, each one testable. A hypothesis that cannot be disproven by a test is not yet a hypothesis.

Reading the interior before touching the exterior

The interior side deserves the same scrutiny as the elevation. Where the finish is stained but sound, where it is deflected, where salts have bloomed on masonry, where paint has released and where it has not — each of these bounds the area that water has reached and, just as usefully, the area it has never reached. Mapping moisture in the surrounding substrate before any water is applied gives the test a baseline to be compared against; the techniques used for that mapping are covered under moisture detection services.

Sequencing the test: low to high, small to large

Controlled water testing works because it is isolated. Water is applied to a limited area, in a controlled manner, for a controlled interval, starting at the lowest suspected element and moving upward. Everything above the test area is masked or left dry. If water is applied everywhere at once and a leak appears, nothing has been learned except that the wall leaks — which the owner already knew.

Working upward matters because water introduced high on a wall will pass every opening below it on the way down, contaminating the result of every subsequent test. Working from small areas to larger ones matters because a positive result at a large area only tells you the leak is somewhere in it.

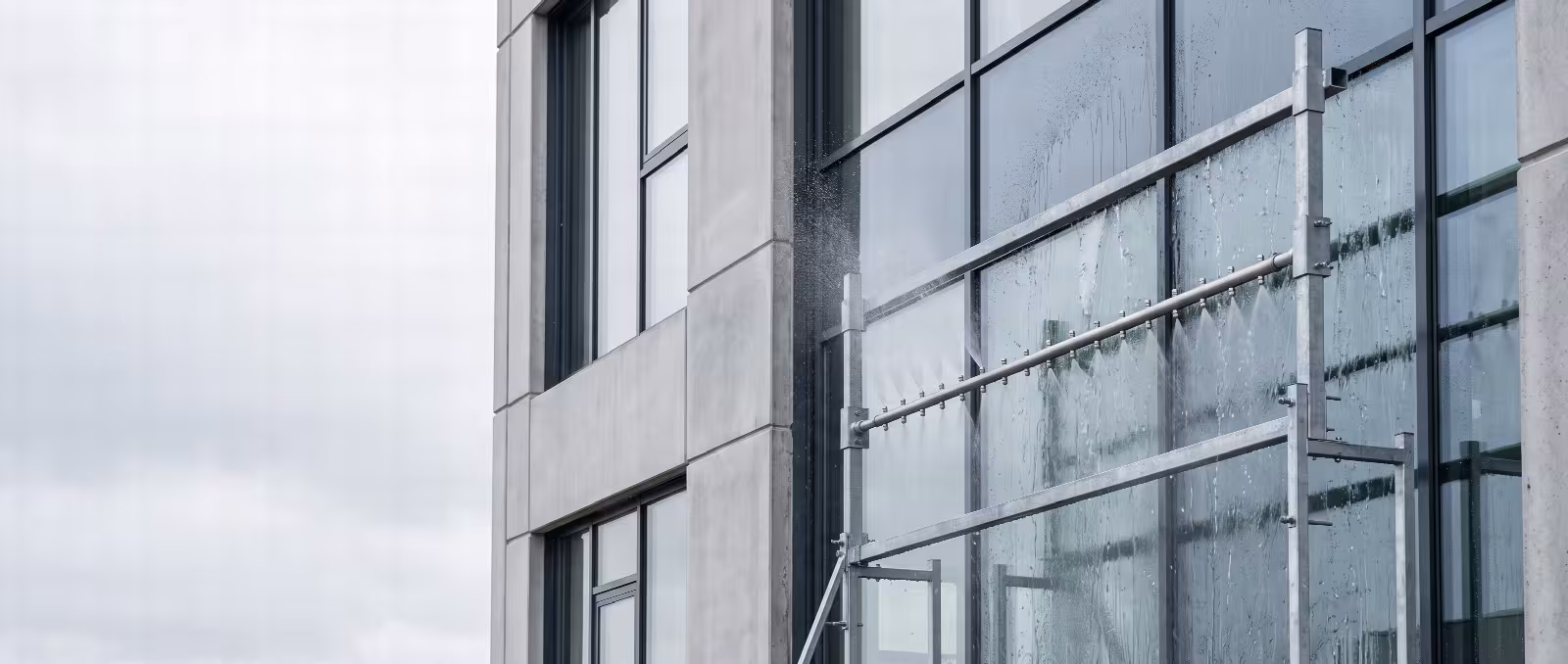

The methods themselves are standardized — spray racks, calibrated nozzles, chambers that impose a pressure difference across the assembly. Where those procedures are described in detail, see air and water infiltration testing and building envelope testing.

The interval between water on and water in

Lag time is data. Water appearing almost immediately suggests a short, direct path with little absorptive material in between. A long delay suggests storage in masonry, insulation or cavity material, or a lengthy horizontal run before the water finds its exit. A leak that only appears after the test moves to a higher elevation redirects the whole hypothesis upward.

Negative results are results

A test that produces nothing eliminates a candidate, and elimination narrows the field just as effectively as a positive. The discipline is in resisting the temptation to escalate — to add water, pressure and area until something finally leaks — because an escalated test proves only that the assembly can be defeated, not that it was defeated by the rain the owner is complaining about.

Separating enclosure leaks from water that never came from outside

Not all interior water enters through the enclosure. Before the investigation concludes, the alternatives have to be ruled out on evidence: condensation on cold surfaces, air leakage carrying moisture into an assembly, plumbing and mechanical sources, and drainage that has backed up. Timing, water chemistry, staining pattern, surface temperatures and the relationship between interior conditions and the weather all contribute to the distinction. Where the question is whether an assembly is condensing within itself under a given climate and interior load, hygrothermal modeling can test that behavior analytically rather than by guess.

Confirmation, and what happens after

A sourced leak is confirmed when the suspected opening is closed or temporarily bypassed, the same test is repeated, and the interior stays dry — then, where practical, the bypass is removed and the leak returns. That reversal is what separates a demonstrated cause from a coincidence.

What follows is documentation: the conditions tested, the sequence used, what was observed, what was ruled out, and the causal path the water followed. That record is what a repair design can be built on and what an owner needs when responsibility for the defect is in question. Investigations conducted with that end in view are described under forensic building enclosure investigation and, for wall and window assemblies specifically, facade leak investigation.

The art, such as it is, lies in knowing which of the fundamentals is governing on this wall, on this day, and testing that one first.

Read the full article (PDF)

Common questions

Why isn't a standard water test enough to find a leak?

Standard test methods answer a pass/fail compliance question across a whole assembly. Sourcing a leak requires masking the assembly and wetting one detail at a time, working upward, so that when water appears the origin is bounded. The same equipment is used, but the sequence and the intent are entirely different.

What should be prepared before an investigator arrives?

Gather occupant reports of when water appeared and under which storm conditions, any available drawings or as-builts, and prior repair records. Arrange access to both the exterior elevation and the interior side of the suspect area, since replication only works when someone can observe where water arrives inside.

What if the leak cannot be reproduced with water testing?

Some entry only happens under wind or stack pressure, seasonal movement, ice damming, or is condensation rather than rain penetration. When the pattern points that way, the investigation shifts toward pressure differential testing, dew-point analysis and hygrothermal evaluation. Plumbing, condensate and drainage sources should also be ruled out.

Does interior finish need to be opened for the investigation?

Often, yes. Concealed water paths travel laterally along framing, flashing and deflection tracks before emerging, so the visible stain rarely sits below the breach. Limited exploratory openings at the suspect elevation let the investigator watch water arrive in real time, which is what confirms the path rather than inferring it.

What is the difference between replicating a leak and simply finding water?

Finding water identifies a wet location. Replicating a leak means reproducing the entry on demand, under controlled conditions, at a known point on the exterior. Replication establishes cause. Wet material only establishes that water arrived somewhere, which says nothing reliable about where it came through the enclosure or why.

Can one interior stain be fed by more than one leak path?

Frequently, yes. A single interior location can collect water from several independent openings, which is why sealing one obvious defect often reduces a leak without stopping it. Sequenced isolation testing is what separates contributing paths. An investigation should continue after the first positive result until the remaining candidates are tested or eliminated.

How is a leak that only appears in winter approached differently?

Cold-weather water is often not rain entry at all. Snowmelt, ice damming, condensation on cold surfaces and moisture carried into assemblies by air leakage all produce winter-only symptoms. The investigation shifts toward surface temperatures, interior humidity, air pressure relationships and assembly behavior rather than relying on water application alone.

How do the findings translate into repair work?

The investigation report documents the cause and the path water followed, which becomes the basis for corrective design: which detail is reconstructed, how far the work extends and what has to be verified afterward. Inspec prepares that documentation and observes the work; the repairs themselves are performed by a contractor.
