Structural clay tile and plywood are two very different roof deck materials—each with its own strengths, risks, and retrofit challenges. This guide explores how these deck types were historically used, how they age, and what to consider when re-roofing over them.

Two decks that share a chapter and nothing else

Structural clay tile and plywood sit together in this part of the series for one reason: both are found under low-slope roofing, and both punish the assumption that a deck is simply a flat surface to fasten to. One is brittle, hollow and unforgiving of point loads. The other is strong, forgiving of handling, and quietly ruined by moisture long before the membrane above it looks like it has a problem.

What a structural clay tile roof deck actually is

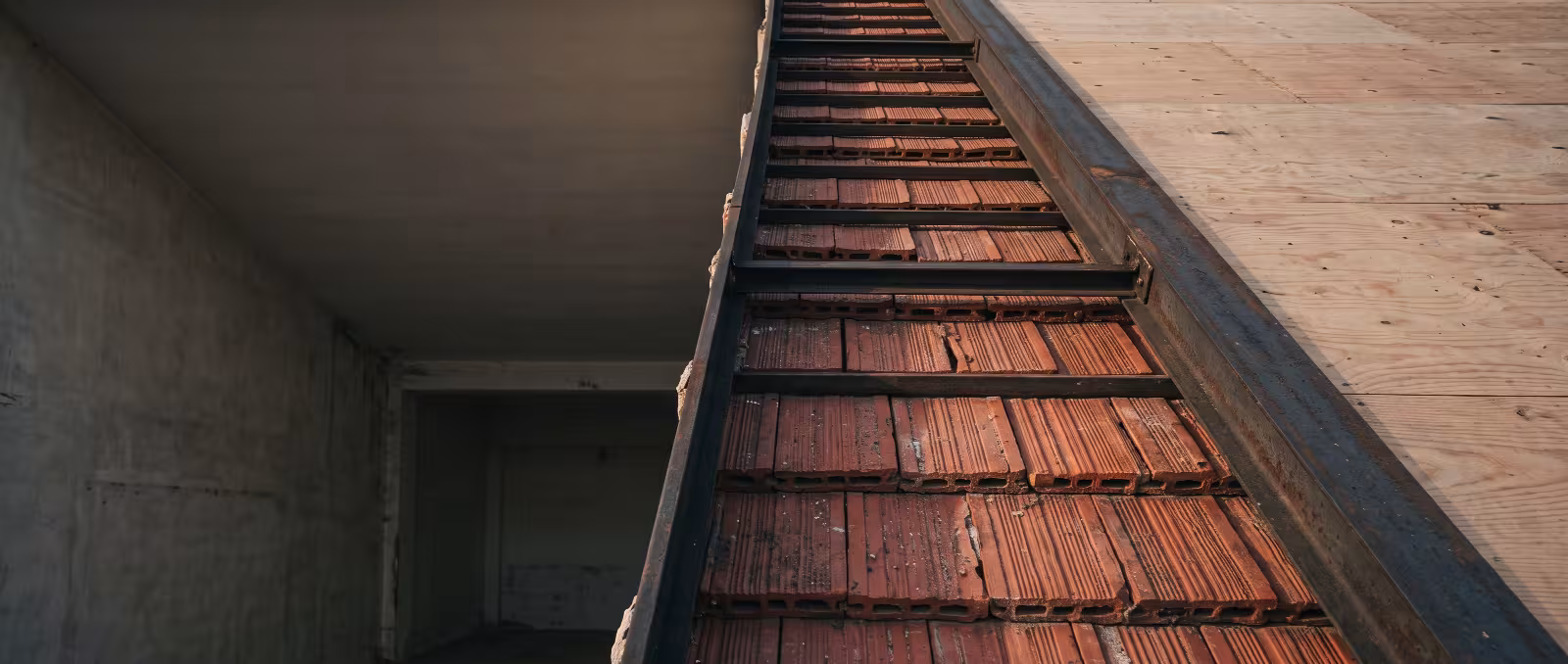

A structural clay tile deck is built from hollow, extruded fired-clay units — commonly called book tile — spanning between steel bulb tees, purlins or beams. The tiles carry load in compression and span in one direction only. In many buildings the tile is finished with a gypsum or lightweight concrete topping that levels the surface and receives the roofing. The system belongs to an era when fire-resistive floor and roof construction was assembled from masonry units rather than poured or sprayed, and it is usually encountered on vintage buildings rather than specified for new work.

Two consequences follow from the geometry. First, the tile is a thin-shelled hollow unit: a concentrated load in the middle of a span, from a foot, a pallet of insulation or a piece of equipment, can crack or punch through a unit that is otherwise carrying its design load without complaint. Second, the webs and shells give a fastener almost nothing to grip, so conventional mechanical attachment of a roof assembly is not a given.

How clay tile decks deteriorate

Deterioration is rarely visible from above while the roof is in place. The patterns worth looking for once the assembly is opened include cracked or displaced tiles over the supporting steel, tiles that have lost bearing at the bulb tee, longitudinal cracking that follows the webs, and a topping that has debonded and is spanning nothing. Long-term leakage adds corrosion of the supporting steel, which is the more serious condition: the tile can be sound while its support is section-loss steel hidden behind a ceiling.

Previous roofing campaigns leave their own marks. Fasteners driven into a deck that was never meant to receive them, cut or drilled tile at drain and curb penetrations, and repairs made with mortar, plywood patches or wood blocking all change how the next assembly can be attached and where load can be placed.

Reroofing decisions on a clay tile deck

The design question is attachment. Where withdrawal resistance cannot be demonstrated, adhered assemblies, ballast, or attachment to a properly designed substrate placed over the deck become the reasonable paths, and each carries its own load and detailing consequences. Any of them depends on knowing what the deck and its supporting framing can carry, which is a structural determination, not a roofing preference. Existing roof assemblies stacked from earlier work add dead load that has to be accounted for before a recover is considered.

Construction protection matters as much as the specification. Staging areas, walk paths, protection boards, equipment routes and load limits belong in the documents, because a deck that cannot take a point load will not distinguish between a workman and a design intent.

Plywood roof decks: strong until they stay wet

Plywood is dimensionally stable, holds fasteners well and spans predictably when the panel grade, thickness and support spacing suit the loads. Its failures are mostly moisture failures and installation failures.

Edges, spacing and fastening

Unsupported panel edges deflect under foot traffic and telegraph through the membrane. Panels butted tight with no allowance for expansion buckle and ridge when they take on moisture. Missed fasteners, overdriven fasteners and nails that back out over seasons of thermal and moisture cycling all show up as fastener heads reading through the roofing. None of these are visible from the finished roof until they are.

Chronic wetting and delamination

Sustained wetting from a leak, from condensation on the underside of a cold deck, or from panels installed wet and closed in, leads to swollen edges, ply separation, loss of fastener holding and decay. The membrane can still be shedding water while the deck under it has lost the capacity to hold the assembly down in wind uplift.

Fire-retardant-treated plywood

Where plywood decking was used to meet a fire-resistance requirement, fire-retardant-treated panels may be present, particularly near party walls and rated separations. Some treatment chemistries are associated with heat-accelerated strength loss in hot roof assemblies. Treated panels should be identified, sampled and evaluated rather than assumed sound or assumed defective, and any replacement has to maintain the rating the original panel was there to provide.

Knowing which deck you have before the design begins

Owners are frequently told one thing and have another. A gypsum or lightweight concrete topping over book tile is easily reported as a concrete deck, and a plywood overlay installed during an earlier reroofing can hide a clay tile deck entirely. From below, exposed steel bulb tees at regular spacing with a segmental or flat soffit between them point toward structural clay tile; a plastered or furred ceiling tells you nothing until it is opened at a discreet location.

Useful starting points are the original framing drawings if the owner still holds them, the building's construction era, probes at a small number of representative locations, and moisture detection services to map wet areas of the existing assembly so that probes are taken where the answers are. On a building with roof areas built at different times, the deck can change at a construction joint without any change in appearance at the membrane, so each area deserves its own confirmation rather than one assumption carried across the roof.

Penetrations, curbs and new rooftop loads

New drains, equipment curbs, screen walls and anchorage points are where both decks get into trouble, because each one asks the deck to do something it was not detailed to do.

Cutting an opening in a structural clay tile deck removes part of a spanning element, and the adjacent units have no capacity to pick up what was removed. Openings need framing carried to the supporting steel, designed for the condition rather than improvised in the field. The same applies to curb and equipment loads: a unit set on sleepers bearing mid-span concentrates load exactly where a hollow tile is weakest. On plywood, openings need headers and continuous edge support at every cut panel edge, and new fastener patterns around a curb have to land on framing rather than on the panel field.

Fire resistance deserves its own look. A clay tile deck is often part of an assembly that was rated as a system, and a plywood or blocking patch set into it is not an equivalent repair even where it carries the load. Where a rating applies, the repair detail has to restore the rating, not just the surface.

Cold-climate condensation under a plywood deck

In Chicago, Milwaukee and Minneapolis, a plywood deck can be wetted from inside the building as readily as from a membrane leak. Air leaking out of a heated space into a vented cavity or into a compact assembly condenses on the cold underside of the panel, and the pattern of damage follows the air leakage paths — around penetrations, at partition tops, above bathrooms and kitchens — rather than following the roof slope. Decks replaced without addressing that path tend to arrive at the same condition again.

This is where the air barrier, the vapour control layer and the insulation strategy have to be settled together with the deck repair, and where hygrothermal modeling can be used to compare assemblies before one is specified. A deck that is dry in service is the objective; new plywood is only the means.

Carrying the unknowns into the bid documents

Neither deck reveals its full condition until the roof is off, which means the documents have to be written to absorb that. Unit prices for deck replacement, quantified by tile unit or by panel, let the hidden work be priced competitively before the contractor is on site rather than negotiated once the crew is waiting. Protection requirements, permitted staging areas, load limits and a requirement to stop and report unexpected conditions belong in the same documents.

The decisions that follow are then made against what is actually exposed, which is the purpose of construction observation and administration on a project of this kind. On a building where the deck condition is the central unknown, a roof condition assessment completed before the budget year is set keeps the scope and the money in the same conversation.

What the investigation has to establish first

For either deck, the design cannot be written from the roof surface. Test cuts and cores, examination from below where ceilings allow, review of original drawings where they exist, and evaluation of the supporting framing tell you which attachment methods are available, how much load the deck can accept, and how much deck replacement belongs in the bid documents rather than in a change order. That work is the subject of a forensic roof investigation, and it feeds directly into the reroofing design and the roof consulting scope that follows.
