Roof Decks A to Z – Part XIV: Structural Fiberboard Roof Deck Planks

Article by L.D. Hogan, F-IIBEC, RRC, PE and Don Kilpatrick

Background on this topic from Inspec

Structural fiberboard roof planks are uncommon in modern construction but frequently appear in older buildings. This guide explores how these cellulose-based decks perform under today’s roofing standards, the unique challenges they pose for reroofing, and how to safely retrofit or restore them for long-term use.

What a structural fiberboard plank deck is

Structural fiberboard roof deck planks are cellulosic wood-fiber boards, compressed and bonded into rigid planks with tongue-and-groove or shiplap edges. Unlike a thin fiberboard cover board laid over a structural deck, these planks are the deck. They span between closely spaced supports — steel bulb tees, subpurlins, joists or timber framing — and carry roof loads directly to that framing.

The underside is frequently the finished ceiling. Many of these decks were installed with a factory-applied finish on the exposed face, so anything done above the deck is also being done above an occupied, visible surface. That single fact shapes most of the decisions on a reroof over fiberboard planks, and it is what separates this deck from the wood, steel and concrete decks covered elsewhere in this series.

Why the deck type has to be confirmed before anything else

Fiberboard planks are easy to confuse with other plank decks of similar appearance: cementitious wood-fiber plank, gypsum plank, and lightweight insulating concrete over form board. Each behaves differently under fasteners, under moisture and under an adhered roof system, so a visual guess from the roof surface is not enough.

Confirmation usually comes from a combination of underside observation, a test cut through the roof assembly, and review of any original drawings or specifications the owner still holds. Once the deck is identified, the remaining questions — capacity, condition and attachment — can be asked in a way that produces useful answers.

How these decks deteriorate

Moisture

Fiberboard is an organic, absorbent material. Water that reaches the plank from a roof leak, from condensation within the assembly, or from a wet insulation layer left in place during a previous reroof softens the fibers and reduces the plank's ability to hold a fastener or carry load. Deterioration is often localized around leak paths, drains, curbs and edges rather than uniform across the roof.

Fastener withdrawal capacity

Wind uplift resistance in a mechanically attached system depends on what the fastener is anchored into. In fiberboard planks the fastener bears on fiber, not on a structural panel or steel flute, and withdrawal values can vary widely across a single roof depending on plank density and moisture history. In-place fastener pull testing at representative locations, including areas suspected of past wetting, is the practical way to learn what the deck will actually hold.

Deflection and support condition

Sag between supports, separated tongue-and-groove joints, and staining or bowing visible from below all point to either overload, long-term moisture, or a problem at the supporting framing. Bulb tees and subpurlins can corrode where water has been trapped, and that corrosion is invisible from the roof surface.

What a field evaluation covers

Underside observation of the plank soffit, joints and supports where access allows, including staining, sag, delamination and prior patching.
Test cuts through the existing roof assembly to identify the deck, the layers above it, and whether trapped moisture is present.
Moisture survey of the assembly to map wet areas before demolition scope is set.
In-place fastener withdrawal testing at multiple locations, correlated with observed condition.
Review of framing spacing and plank span to establish what the deck was designed to do.
Review of available original documents, prior roof work and known leak history.

Findings are documented in a written report with the observations, test locations and results, and the recommendations that follow from them. Where deterioration appears structural rather than cosmetic, the evaluation moves into forensic roof investigation territory and structural review by an engineer.

Planning the reroof

Once the deck's condition and holding capacity are known, the attachment strategy follows. Options generally include selective plank replacement, an overlay of a new structural panel over the fiberboard to receive fasteners, a fully adhered assembly designed to suit the substrate, or replacement of the deck. Each has consequences for the exposed ceiling below, for interior protection and occupancy, and for the wind uplift design the assembly must meet.

Two items deserve attention early. First, tear-off over an exposed-ceiling deck means debris, fastener penetrations and weather exposure directly over occupied space, so the phasing and temporary protection belong in the specifications rather than in a field conversation. Second, if a vapor retarder or added insulation is being introduced over an organic deck, hygrothermal modeling can show whether the revised assembly dries or accumulates moisture in the local climate.

Mixed conditions are common: a building may have fiberboard planks in one wing and another deck type elsewhere, which is a different problem again and one addressed in our article on hybrid deck assemblies. For comparison with other decks in this series, see oriented strand board and cast-in-place structural concrete.

Getting an independent read

Inspec inspects, tests, investigates and designs — we do not perform the work we specify, so the recommendation on a fiberboard deck is not tied to a repair method anyone stands to sell. Owners and facility managers weighing a reroof over a plank deck can start with roof consulting or contact us from our Chicago, Milwaukee or Minneapolis offices.

Read the full article (PDF)

Common questions

How is a structural fiberboard plank different from fiberboard cover board?

Cover board is a thin sheet placed above insulation to protect the membrane and carries no structural load. A structural fiberboard plank is a thick tongue-and-groove board designed to span between bulb tees, purlins or joists, carrying roof loads while also providing modest insulation and, in many buildings, the exposed interior ceiling surface.

Can a new roof be mechanically attached to a fiberboard plank deck?

Sometimes, but never on assumption. Fiberboard loses withdrawal resistance as it absorbs moisture and ages, so in-situ fastener pull testing across the roof is the only reliable way to know. If measured values fall short of the uplift requirement, an adhered assembly, a new overlay deck or plank replacement becomes necessary.

What does moisture do to a structural fiberboard deck?

Water softens the fiber matrix, causing sag between supports, crushing at bearing lines, delamination at plank edges and steep loss of fastener holding power. Damage often concentrates near drains, curbs and penetrations. Because the deck absorbs water, interior ceiling staining may be absent even where the plank has substantially deteriorated.

Do we have to replace the deck, or can we roof over it?

That depends on test results, not on the deck's age. Sound planks can often be recovered with an adhered assembly. Deteriorated bays may allow localized replacement. Widespread sag, crushed bearing points or structural findings usually push the project toward an overlay deck or full replacement, which changes perimeter heights and interior conditions.

How can I identify a structural fiberboard plank deck from inside the building?

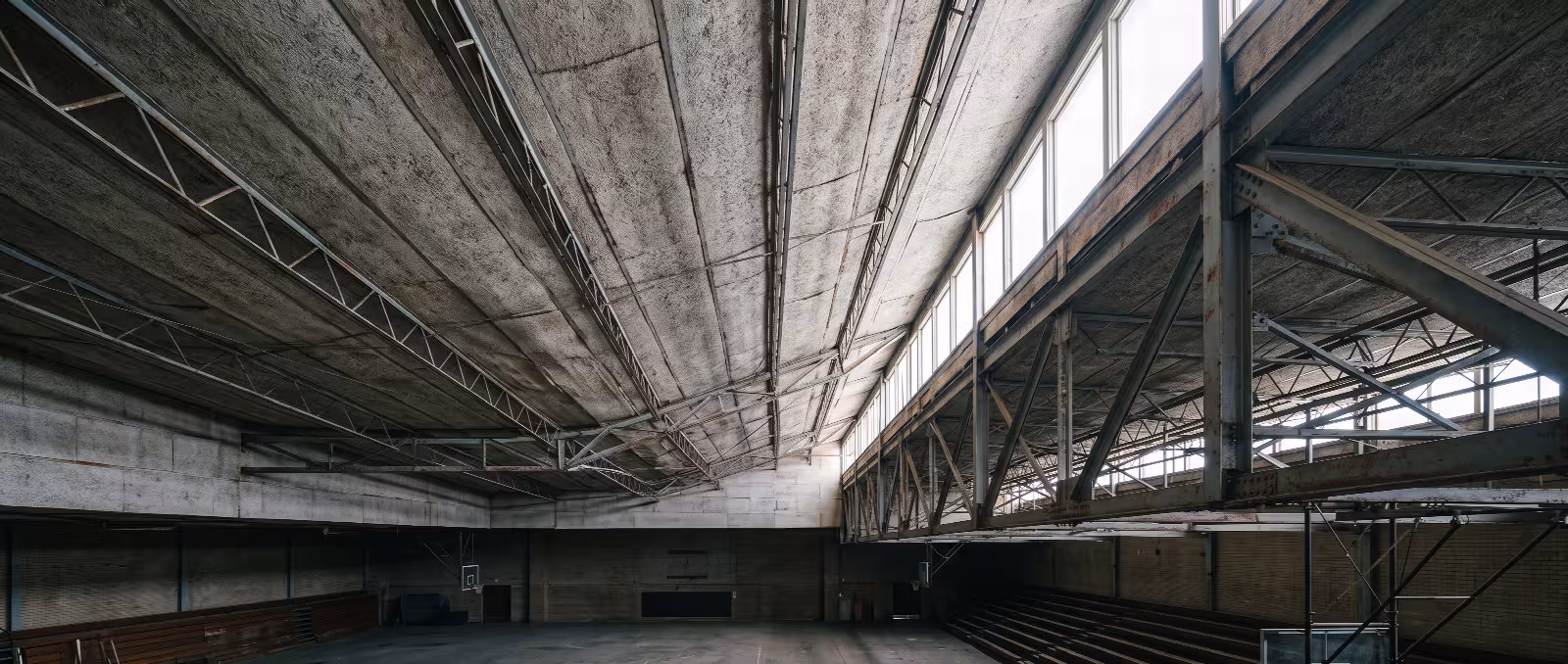

Look up. Structural fiberboard planks usually read as a continuous plank ceiling with tongue-and-groove joints running perpendicular to closely spaced steel bulb tees or purlins, often with a factory finish on the exposed face. Because gypsum and cementitious wood-fiber planks look similar, confirmation normally requires a test cut through the assembly rather than a visual call alone.

Does the exposed underside need protection during reroofing?

Almost always. When the plank soffit is the finished ceiling, tear-off debris, fastener penetrations and weather exposure land directly over occupied space. Interior protection, phasing, daily tie-in requirements and limits on open deck area belong in the project specifications, so the contractor prices them and the owner is not negotiating them mid-project.

Do we need a structural engineer, or is a roof consultant enough?

It depends on what the evaluation finds. Condition assessment, moisture survey and fastener withdrawal testing establish whether the deck can receive a new roof. If planks are sagging, supports are corroded, or new rooftop loads are proposed, structural review is warranted. Inspec includes engineers and architects, so that review can follow the field work directly.

What should an owner gather before a fiberboard deck reroof is designed?

Original drawings or specifications identifying the deck and framing, records of previous roof replacements or repairs, documented leak locations and dates, and any prior test cut or moisture survey reports. This history explains where wetting has occurred and focuses field testing on the areas most likely to have lost fastener holding capacity.
