Vintage Structure with Hybrid Decking and Low-Rise Foam
Article by Don Kilpatrick
Read the full article (PDF)Background on this topic from Inspec
Restoring vintage roof decks can uncover unexpected hybrid assemblies—like structural clay tile over cast-in-place concrete. This article explores a unique solution using low-rise foam adhesive when mechanical fasteners failed due to hidden reinforcement, and shares tested performance results.
One roof, several decks
Buildings that have been added onto, raised or repurposed over a long service life rarely have a single roof deck. An original bay may be structural clay tile spanning between steel beams. A later addition may be cast-in-place concrete. A mechanical penthouse, an infilled light well or a re-framed low-slope area may be wood or steel. Where those areas sit under one continuous membrane, the roof is a hybrid deck, and the attachment method that works well over one substrate can be unusable a few feet away.
The problem is not that mixed decks cannot be roofed. It is that a single specification, written as though the roof were homogeneous, will be correct in some areas and wrong in others — and the wrong areas are usually the ones that fail first. Hybrid roof deck installation is less a product decision than a mapping exercise: establish where each deck begins and ends, then design attachment, transitions and uplift documentation against that map.
Why low-rise foam adhesive comes up on vintage decks

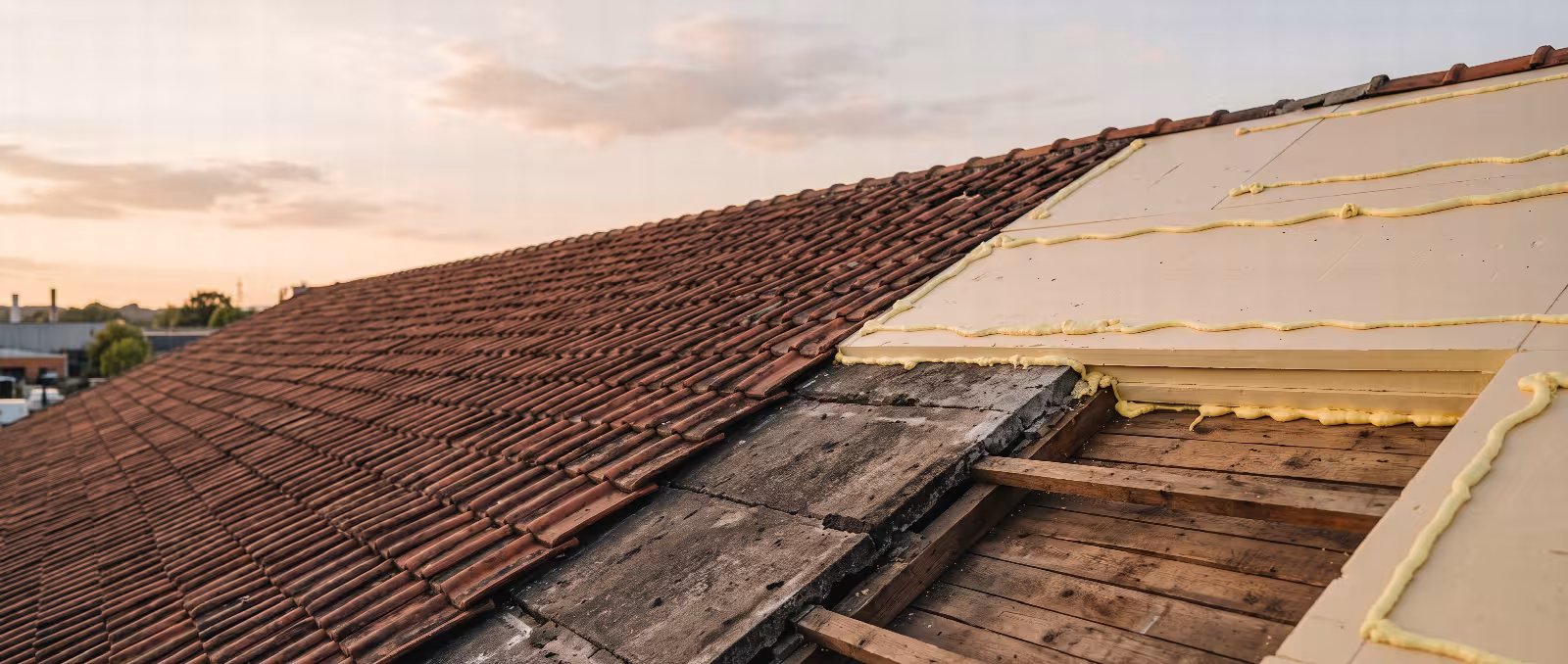

Low-rise polyurethane foam adhesive, applied in ribs to bond insulation and cover boards, is frequently proposed on older buildings for reasons that have little to do with the membrane itself:
- No penetration of the deck. Structural clay tile, concrete plank and thin topping slabs can be damaged or perforated by fastening. Adhesive avoids drilling into a deck whose remaining capacity is uncertain.
- Hidden reinforcement and embedded items. Older slabs and toppings may contain reinforcement, conduit or embedded steel that a fastener pattern cannot reliably miss.
- Occupied interiors. Adhesive attachment avoids the noise, vibration and dust of fastening over finished ceilings, plaster, or spaces that cannot be shut down.
- Irregular surfaces. Older decks are rarely flat. Ribbed adhesive can accommodate a degree of undulation that a plate-and-fastener pattern cannot.
- Existing assemblies left in place. Where a sound existing system is being recovered rather than removed, adhesive bonds to the surface presented rather than reaching for structure below it.
None of these reasons establish that adhesive is appropriate on a given deck. They establish why the question needs to be answered deliberately rather than by default.
Where adhesive is the weaker choice
Foam adhesive transfers uplift load through a bond line, so the assembly is only as strong as the weakest layer in that stack. On vintage decks the weak layer is often not the adhesive at all — it is a friable topping, a dusting or spalling concrete surface, a deteriorated existing membrane being recovered, or a clay tile deck whose face has been softened by long-term moisture. Damp substrates, cold surfaces and surfaces outside the manufacturer's stated conditions also change how the product behaves. A hybrid roof frequently ends up with adhesive over one deck and mechanical attachment over another, by design.
Reading the deck before the assembly is designed
On a hybrid roof, investigation has to establish more than "what is the deck." It has to establish where each deck type starts and stops, what condition each is in, and what each will actually hold. That typically involves test cuts in each distinct area rather than a single representative opening, verification of framing direction and support spacing, moisture assessment of the existing assembly, and field testing appropriate to the proposed attachment — withdrawal resistance where fasteners are contemplated, bond or uplift testing where adhesive is. Test locations chosen for convenience, all in one corner of the roof, tell you very little about a roof made of three different structures.
The behaviour of each substrate is a subject in its own right; the characteristics of a structural clay tile deck and of a cast-in-place concrete deck are covered separately. What matters here is that those characteristics are being asked to coexist under one membrane, and that each one carries its own attachment values.
Interior observation matters as much as roof-level work. Underside conditions frequently reveal previous alterations, added loads, corroded bearing steel and past leak paths that are invisible from above. Where the record set is incomplete or the construction sequence is unclear, this is where the building's history is legible. Our forensic roof investigation work often begins here.
The transitions are the detail that matters
The most demanding part of a hybrid deck roof is rarely the field of any one area — it is the line where two decks meet. Those lines commonly coincide with a change in structural system, a differential movement joint, a change in deck elevation, or a former exterior wall now buried inside the building. Detailing must account for:
- Independent movement of two structures that were never designed to act together
- A change in attachment method occurring at the same location as a change in substrate
- Insulation thickness and slope reconciling across the joint without creating a low point
- Air barrier and vapor control continuity where the two decks have very different permeance
- Former parapets, curbs and bulkheads left in place beneath the new work
Where an old exterior wall or a raised bay now sits above the roof plane, the wall itself becomes part of the roofing problem — a subject taken up separately in repair of above-roofline parapet walls.
Uplift is not uniform, and neither is the deck
Wind design already varies across a roof by zone, with corners and perimeters loaded more heavily than the field. On a hybrid deck, that zoning is overlaid on a second, unrelated map: the deck map. A corner zone may fall on the weakest substrate on the roof. The governing condition is the combination of the two, evaluated area by area, and it is the reason the specification and the roof plan have to show attachment by area rather than as one note. Manufacturer approvals and tested assemblies are written against named decks, so the supporting documentation has to be assembled zone by zone as well.
Carrying the design through construction
Hybrid assemblies place unusual weight on field verification, because the drawing boundary between deck types is an estimate until the existing roof is off. Substrate preparation, adhesive rib spacing, board placement while the adhesive is still open, and confirmation that the specified attachment matches the deck actually exposed are all decisions made on the roof, on the day. Construction observation is how the assembly that was designed becomes the assembly that gets built.
The documentation produced along the way — a marked-up plan showing where each deck type and each attachment method actually ended up — is worth keeping with the building records. It gives every later roof condition assessment a starting point, and it is what the next consultant, and the next roof, will need.
