Why a plaza deck hides its own leaks

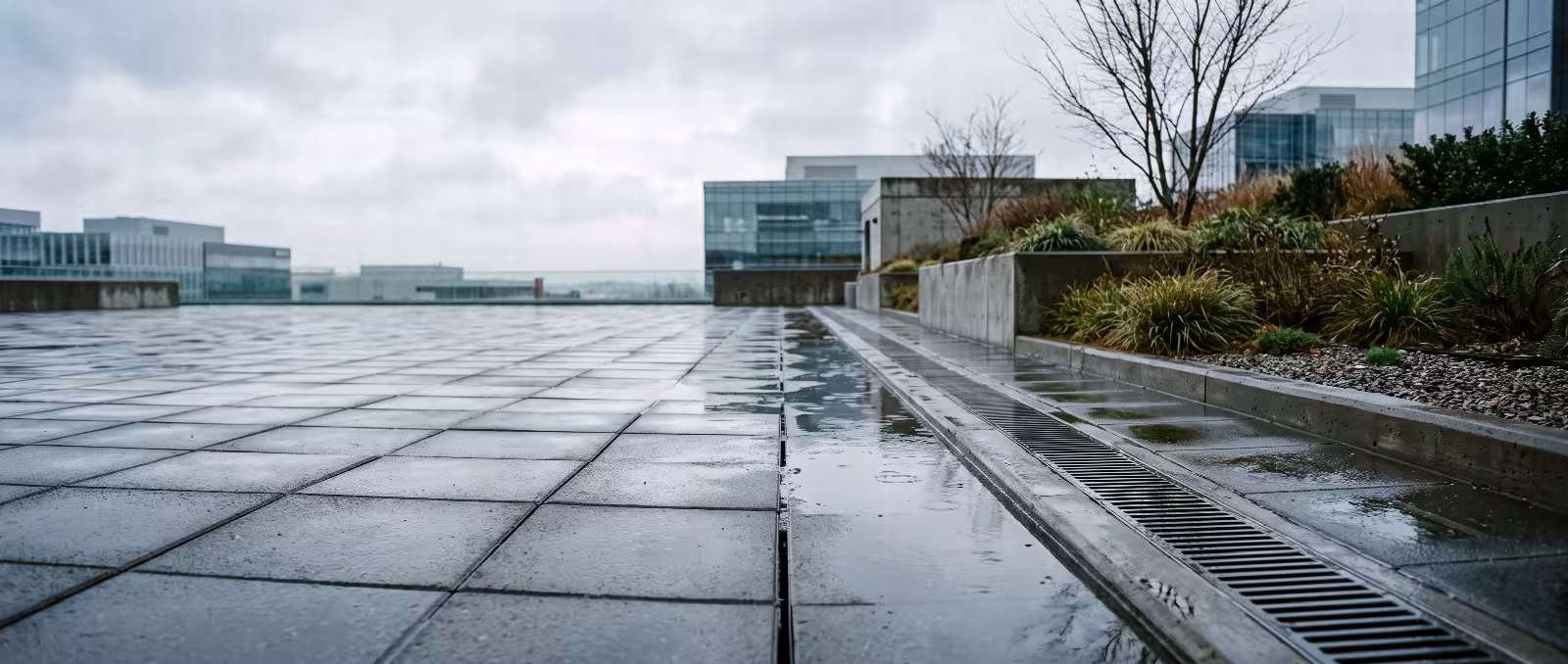

This INSPEC article, published in RCI Interface, looks at the investigation of water infiltration through plaza decks — the occupied surfaces built over parking structures, basements, lobbies and mechanical rooms. A plaza is a waterproofed structural deck with a working surface built on top of it, and that working surface is the whole problem. Pavers, pedestals, setting beds, drainage composite, insulation, soil and planting all sit between the person reporting the leak and the defect that caused it.

Water that enters at a failed joint does not fall straight through. It travels laterally along the membrane, along the drainage plane, along the top of the structural slab, and along beams and conduit before it appears at a ceiling stain, an efflorescence trail or a puddle on a parking level. Investigating a plaza therefore has less in common with chasing a roof leak than owners expect, and the sequence in which the work is done determines whether the overburden comes off once or three times.

The assembly, layer by layer

Understanding where water can go begins with knowing what is actually there. A plaza assembly typically includes some combination of the following, and the article treats each as a place water can be introduced, stored, redirected or trapped:

• Structural deck — usually concrete, with its own cracking, cold joints and penetrations.
• Waterproofing membrane — fully adhered systems behave very differently from loose-laid systems once water gets underneath.
• Protection course and drainage composite — intended to move water to the drains, frequently crushed, displaced or omitted at the edges.
• Insulation and filter fabric — buoyant, shiftable, and capable of holding water against the membrane.
• Setting bed, pedestals or soil — the wearing course and everything that supports it.
• Terminations — drains, curbs, door thresholds, planter walls, railing posts, light bases, expansion joints and the transition down to the wall or foundation below.

The as-built version of this stack is rarely the drawn version. Layers get substituted during construction, drainage composite gets trimmed back at curbs, and later work adds penetrations nobody recorded. Part of the investigation is simply establishing what assembly the building actually has.

Where the water is usually getting in

Drains and the drainage plane

Plaza drains have to collect water at two levels: the surface and the membrane. Clamping rings that were never tightened, drainage courses that stop short of the drain body, filter fabric packed with fines, and secondary weep paths that were paved over all produce the same result — water standing on the membrane rather than leaving through the drain.

Joints and transitions

Expansion joints, control joints and the junction between deck membrane and adjacent wall waterproofing carry movement that the field of the membrane never sees. These transitions are also where two trades met, often months apart, and where the detail on the drawing may not match what was built.

Penetrations and later work

Railing posts, planter drains, sign bases, conduit and anything drilled into the deck after the plaza was finished are common entry points. So is construction damage: a membrane punctured during placement of overburden fails at the puncture, not at a location anyone would predict from the interior stain.

Snow, salt and surface maintenance

Plazas are plowed, shoveled, salted and loaded with furniture and vehicles. Blades catch raised pavers and thresholds, de-icing chemicals attack concrete and sealant at curbs and planters, and water that cannot reach a drain sits in the setting bed through the winter. Damage from maintenance practice is treated as a finding in its own right, because the repair detail has to survive the next season of it.

Sequencing the investigation

The point of a plaza investigation is to remove as little overburden as possible while still reaching a defensible conclusion. The article describes working from the inexpensive and non-destructive toward the destructive:

• Document review — original drawings, shop drawings, warranty documents and any record of prior repairs, which often explain both the assembly and its history of patching.
• Interior mapping — recording every stain, deposit and active drip below the plaza, with the structural framing overlaid, so that lateral travel paths can be reasoned about rather than assumed.
• Surface survey — slopes, ponding, settled pavers, open joint sealant, blocked drains and vegetation, all of which point at zones rather than at points.
• Controlled water testing — introducing water in isolated stages at suspect terminations while the interior is observed, so that a positive result implicates one detail instead of the whole plaza.
• Targeted test cuts — opening the overburden only where the preceding steps justify it, then documenting the as-built layering and the condition of the membrane at that location.

Each step narrows the next. Our general approach to sourcing interior water is described in our article on replicating and sourcing leaks; a plaza simply adds several feet of material between cause and effect. Related methods are outlined under moisture intrusion analysis and building envelope testing.

The overburden drives the economics

On most plazas the waterproofing membrane is a small part of what it costs to reach the membrane. Removing and reinstating pavers, pedestals, soil, planting, railings and lighting, while keeping an entrance or a drive lane open, is usually the larger number. That asymmetry shapes every recommendation: it is worth considerable investigative effort to avoid opening the wrong area, and it is rarely worth patching a detail blindly when the opening is already made.

It also shapes the repair-versus-replacement discussion. Where testing implicates discrete terminations and the field membrane is intact at the test cuts, localized reconstruction can be justified. Where the drainage plane is non-functional across the deck, or where openings show the membrane has been compromised in several unrelated places, piecemeal work tends to be spent twice. The investigation exists to tell the owner which of those two situations is in front of them, and to give the design team enough information to detail the work.

Phasing matters too, because the space below stays occupied. Tenants park, store and operate under the deck, and work above them has to be staged around access, protection and drainage during construction.

Plaza decks, roofs and below-grade work are not the same problem

A plaza is exposed to weather like a roof, buried like a foundation wall, and loaded like a pavement. It gets snow removal equipment, de-icing chemicals, vehicles and furniture. Because the membrane is inaccessible and cannot be inspected the way a roof surface can, decisions about repair versus replacement turn on what the investigation can prove about the extent of the failure — not on a visual survey. The distinction between waterproofing and roofing is treated separately in Waterproofing is Not Below-Grade Roofing, and our related service work is outlined under waterproofing consulting.
