Innovative Window Injection Technique Saves Owner $500,000
Article by David Campbell, RWC, AIA
Read the full article (PDF)Background on this topic from Inspec
A leaking window system in a Minneapolis apartment complex posed a costly repair challenge—until a creative grout injection method eliminated leaks and saved the owner over $500,000. This case study explains how hydrophilic grout helped avoid invasive window removal and delivered long-term performance.
Why owners look at injection before replacement
Chronic leakage at window perimeters is one of the most disruptive problems a building owner can carry. Water shows up at the head, jamb or sill, interior finishes stain, tenants complain, and the assumed remedy — removing and replacing the units — brings swing stage or lift access, interior protection, tenant coordination and a long schedule. Before committing to that, it is worth asking a narrower question: where exactly is the water crossing the plane of the wall, and can that path be filled rather than rebuilt? Where the answer is yes, chemical grout injection can stop the leak with the windows left in place.
What perimeter injection actually treats

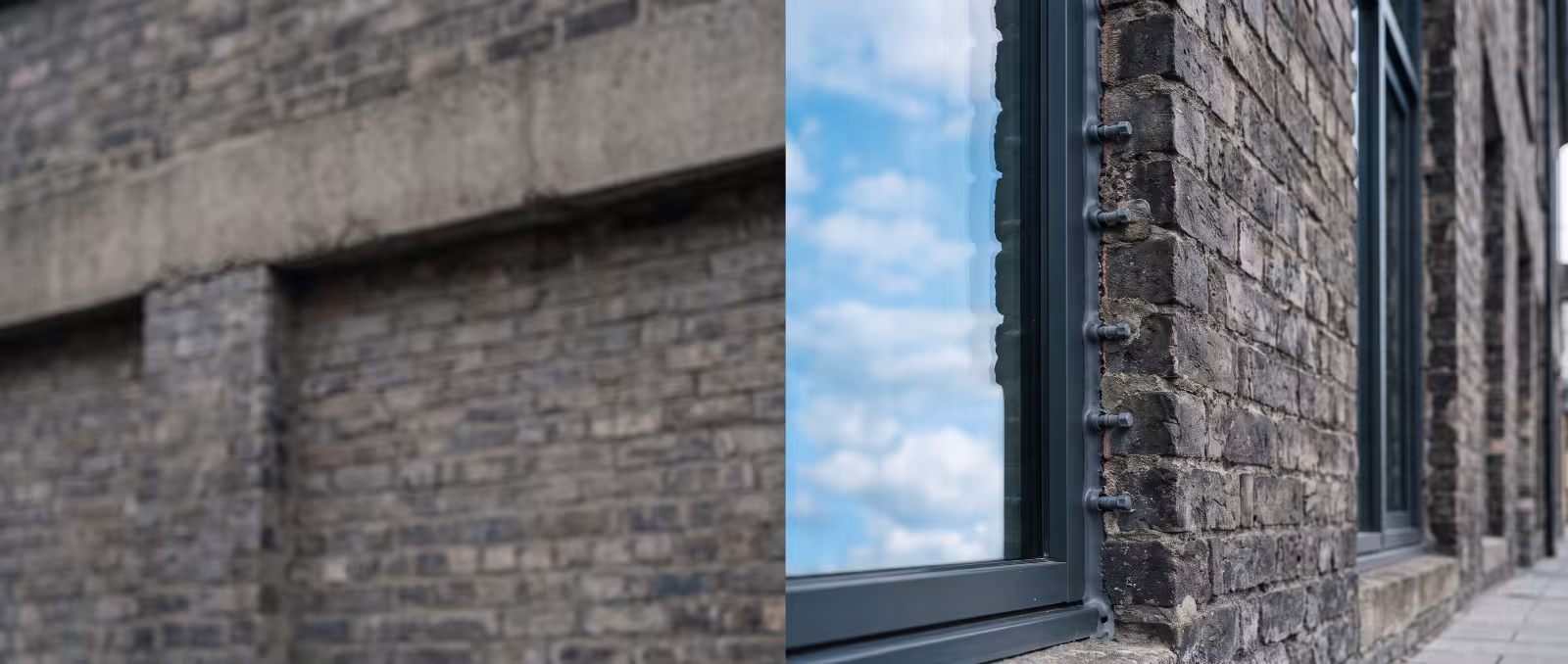

Injection is a void-filling repair. Ports are drilled into the perimeter joint, the shim space, or the adjacent masonry or concrete, and a resin is pumped in under controlled pressure until it fills the interconnected voids along the leak path. Hydrophobic polyurethane resins react with the water already present and expand into a closed-cell foam; hydrophilic materials form a gel that swells and shrinks with moisture and generally suit joints that stay damp, a behavior we look at more closely in our assessment of polymer gel waterproofing. Either way, the material seals a path — it does not rebuild flashing, it does not create drainage, and it does not correct a window system that was the wrong choice for its exposure.
That distinction drives everything else. Injection is a strong candidate when water is migrating through voids in a perimeter seal, a poorly filled shim space, cracked mortar, or a cold joint between dissimilar materials, and when the surrounding construction is sound and stable. It is a poor candidate when the leak originates at failed glazing seals or frame corners, when the sill receptor or flashing has no functioning drainage, when the assembly is still moving seasonally, or when the units themselves are at the end of their service life. Related failure patterns are covered in our articles on window receptors and misapplied storefront systems.
Diagnosis has to come first
An injection program specified from a set of leak complaints and a walk-through is a gamble. We start by reproducing the leak under controlled conditions — spray testing in a deliberate sequence, masking and unmasking joints, and where necessary making small inspection openings to see the concealed construction. The goal is not to confirm that the window leaks; it is to identify which joint, in what order, at what water volume and pressure. Our approach to that work is described in replicating and sourcing leaks and in our facade leak investigation services. Where interior damage is already present, moisture intrusion analysis tells us how far the water has travelled behind the finishes.
Diagnosis also establishes the baseline. If a representative opening leaks under a documented test procedure before the repair, the same procedure afterward becomes the proof that the repair worked.
Comparing injection and replacement honestly
Owners usually frame the choice as a unit price comparison, and that is the least informative part of it. A sound comparison puts the following on both sides of the ledger:
- Access. Exterior access often drives the cost of either approach, and it does not disappear because the windows stay in place.
- Interior work. Replacement generally means finish repair at every opening and coordinated access to every occupied space; injection is normally worked from the exterior, with interior access needed for observation and retesting.
- Remaining service life of the units. Money spent sealing frames that are near the end of their life is money spent twice.
- Scope certainty. Replacement scope is countable. Injection scope depends on how the voids take material, so the budget needs room for openings that behave differently from the mock-up.
- The cost of waiting. Continued water entry keeps damaging finishes, insulation and concealed framing while the decision is deferred.
None of these can be weighed before the leak path is known, which is the practical argument for testing first and pricing second.
Specifying the repair
Once injection is judged appropriate, the specification has to be tight enough that the result does not depend on the injector's judgment alone. Items we address include:
- Mock-up first. One or more representative openings are injected and retested before the repair is released building-wide.
- Material selection. Hydrophobic versus hydrophilic chemistry, cure characteristics in cold weather, and compatibility with existing sealants, coatings and interior finishes.
- Port layout and pressure limits. Enough ports to fill the void, and pressure ceilings that will not displace glazing, deform frames or push resin into the occupied space.
- Protection and clean-up. Resin that escapes is far easier to prevent than to remove from stone, brick or an interior sill.
- Records per opening. Volume taken, refusal, and any opening that behaves differently from the mock-up.
- A defined off-ramp. What happens when an opening will not take material, or leaks again after injection — including the point at which that opening is pulled out of the injection scope and evaluated for a different repair.
Inspec specifies and observes this work; we do not perform it. The injection is carried out by the owner's contractor, and our role during construction is observation and contract administration — confirming that what was specified is what is being installed.
Verifying that the leak is gone
A repair is only demonstrated by retesting. We return to the openings that leaked, apply the same test procedure used to establish the baseline, and document the result. Depending on the assembly and what is being proven, that may be nozzle spray testing of fixed glazing and joints or chamber-based field water penetration testing of the whole opening. Both are described under air and water infiltration testing. Verification is what separates an injection program from hopeful caulking: the owner ends up with a written record of which openings were treated and which ones passed.
Where injection fits in a capital plan
Injection is a targeted repair, not a substitute for eventually replacing units that have reached the end of their useful life. Used well, it stops active water entry and interior damage, and it lets an owner schedule window replacement as a planned capital project rather than an emergency. Used badly — on the wrong failure mode, without diagnosis, without retesting — it hides a leak path for a season and the water finds another way in. The decision belongs in the same conversation as the rest of the enclosure, which is why we usually look at windows alongside the walls they sit in through exterior walls and window consulting.
If you are weighing an injection repair against replacement on a building in Chicago, Milwaukee or Minneapolis, contact Inspec and we can talk through what the leak evidence supports.
