Renting the roof without renting the leak

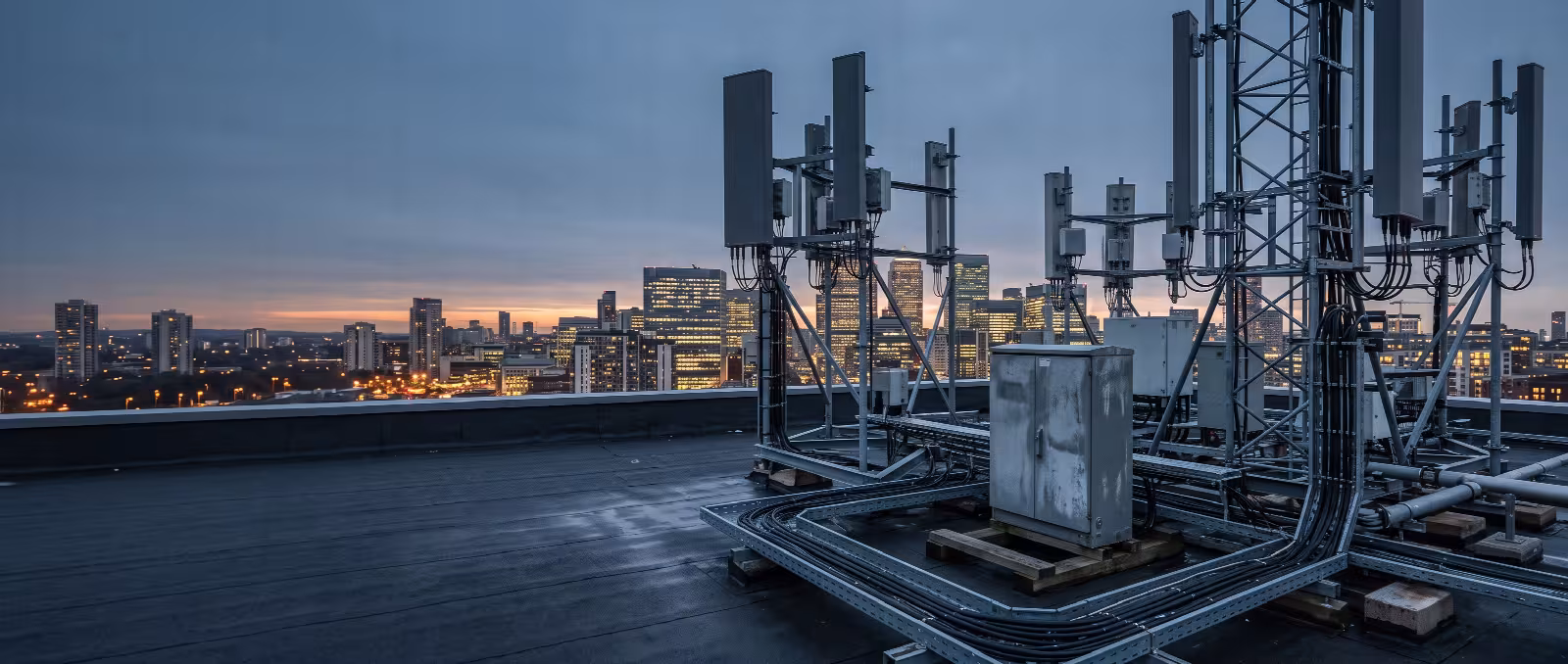

Wireless carriers pay for rooftop space because tall buildings already stand where coverage is needed. For a building owner, an antenna lease is income from an asset that is sitting there anyway. What the agreement rarely spells out clearly is that the roof underneath the antennas remains the owner's asset, the owner's maintenance obligation and, eventually, the owner's replacement cost. Rent is negotiated in dollars; the roof is given away in square feet.

Looked at from the roofing side of the transaction, the question is not whether to accept the lease. It is where in the process the owner still has leverage, and what has to be written down while that leverage exists.

What carrier equipment does to a roof system

Damage from rooftop telecommunications work is seldom one dramatic event. It accumulates, and it accumulates in places nobody looks at until water shows up inside.

• Penetrations and flashings. Mounts, guy anchors, conduit supports and grounding conductors all pass through the membrane. Each one is a flashing detail that has to be built correctly and then maintained for the life of the lease.
• Concentrated and point loading. Equipment cabinets, ballast blocks and steel frames impose loads on a deck and on insulation that were never selected to carry them. Compressed insulation does not recover.
• Traffic. Installation crews, and later service crews, follow the shortest route from the roof hatch to the equipment. Without protected walkways, that route becomes a wear stripe.
• Blocked drainage. Sleepers, cable trays and conduit runs laid across the roof act as dams. Ponding that was not there before the installation is a common finding afterward.
• Dissimilar materials. Bare copper grounding, unprotected steel, and sealants and coatings that are not compatible with the membrane all shorten the life of what they touch.
• Debris and abandoned hardware. Cut cable, fasteners, banding and superseded equipment left behind after an upgrade are a puncture source and a maintenance nuisance.

None of this is an argument against leasing rooftop space. It is an argument for treating the roof as part of the deal rather than as the floor the deal sits on.

Compare the lease term against the roof's remaining service life

A lease that runs longer than the roof beneath it guarantees a collision. The owner's practical choices at that point are to reroof around equipment that cannot be shut down, to pay for temporary supports and resetting, or to defer replacement on a roof that is already failing. Each of those is more expensive than the conversation that could have happened before signing.

Establishing apparent remaining service life is straightforward while the roof is still accessible and empty. It calls for a look at the assembly, the deck, the flashing condition and any existing moisture in the insulation — information that moisture detection survey methods can provide without demolition. Once that number exists, the lease term, the renewal options and the reroofing provisions can all be written against it.

Establish the roof's condition before the crew mobilizes

The single most useful step an owner can take is to document the roof before anyone climbs onto it. A dated condition survey with photographs establishes what the roof looked like, what its apparent remaining service life is, and which defects already existed. Without that record, every later dispute about who caused a leak becomes an argument between parties with no evidence, and the owner generally absorbs the cost.

A commercial roof inspection before installation also identifies the areas that should not carry equipment at all: thin or deteriorated insulation, weak deck spans, existing ponding, and locations that would obstruct access to drains, expansion joints, hatches or other rooftop equipment. Steering the installation away from those areas costs nothing at the planning stage and is nearly impossible once steel is set.

Write the roof into the agreement

Lease negotiations concentrate on rent, term and access. The roof deserves its own technical exhibit, and it is far cheaper to draft one than to argue one. Items worth addressing include:

• Who reviews and approves mounting and attachment details before fabrication, and who inspects them after installation.
• How the existing roofing warranty and the manufacturer's requirements are to be honored, and who coordinates with the manufacturer.
• A structural review of the added loads, by an engineer, before equipment is ordered.
• Required protection during construction, defined access routes, staging areas and permanent walkway protection.
• Which contractor is permitted to cut and flash the membrane, and under whose observation.
• What happens when the roof reaches the end of its service life during the term, including who bears the cost of removing, supporting and reinstalling equipment.
• Restoration obligations at lease end, including removal of anchors and proper repair of every penetration.
• Notice requirements for future modifications, upgrades and additional carriers.

These provisions are only as good as the enforcement behind them. An owner who is told after the fact that work occurred has no practical remedy; an owner who receives notice and has someone on the roof during the work has several.

Co-location: the second and third tenant

A rooftop that hosts one carrier often ends up hosting several, plus the antennas, dishes and small cells that arrive with each equipment generation. Every addition brings a crew that did not install the previous work and does not consider itself responsible for it. Cable runs cross one another, drainage paths narrow, and the route from the hatch to the far parapet fills up.

Owners do better issuing a single set of rooftop standards that every tenant and every subcontractor receives than negotiating the same technical points one installation at a time. The standards can be referenced by each lease and updated as the roof changes.

Access, safety and knowing who is on the roof

Once transmitting equipment is live, the owner's own maintenance staff may face restrictions on when and where they can work near antennas. That has a practical consequence: routine roof maintenance, drain clearing and winter inspections have to be coordinated with the tenant rather than performed at will. Building that coordination into the agreement keeps basic maintenance from quietly stopping.

It also matters who holds the key. Rooftop access that is granted directly to carriers and their subcontractors, without notice to the owner, produces undocumented work. A sign-in requirement and advance notice cost the tenant nothing and give the owner a record.

Managing the roof through the lease term

Inspection has to continue after the equipment is in place. Service visits happen without the owner watching, and each one is an opportunity for a new penetration, a displaced walkway pad, a disturbed flashing or a blocked drain. Periodic inspection catches those while they are still cheap to correct and keeps the paper trail current — which is what makes a damage claim collectible rather than theoretical. During the installation itself, construction observation puts someone on the roof who answers to the owner.

When a leak does appear beneath a rooftop installation, the question is rarely whether water is entering — it is which of several possible sources is responsible, and who pays. That is a job for forensic roof investigation rather than for opinions traded between the owner, the carrier and the installer.

Lease end, upgrades and what gets left behind

Equipment generations turn over faster than roofs do. Each upgrade can leave the previous mounts, frames, conduit and cable in place, and by the end of a long term the roof may carry hardware nobody on site can identify. Removal and restoration obligations are easy to write at the beginning of a lease and very difficult to negotiate once a tenant is preparing to leave. The same applies to decommissioned hardware mid-term: a provision requiring removal of superseded equipment at the time of each upgrade prevents the accumulation.
