A wet roof with nothing wrong on top

Some low-sloped roofs deteriorate without a single failure in the membrane. The seams are sound, the flashings are intact, the drains run, and yet the deck under the insulation is soft, corroded or delaminating. The water in these assemblies did not fall on the roof. It came out of the air inside the building, condensed on a cold surface within the assembly, and stayed there.

A low-sloped roof is a stack of layers with a temperature gradient running through it. In a heated building in a cold climate, the top of that stack sits near outdoor temperature for months. If warm, humid interior air is allowed to reach the cold part of the stack, the roof collects water from the inside out, and no amount of work on the membrane changes that.

Two ways interior moisture reaches the roof

Vapor diffusion

Vapor diffusion is the slow movement of water vapor through materials in response to a difference in vapor pressure. In a heated building in winter, that drive is upward and outward. Diffusion is steady, predictable and generally the smaller of the two mechanisms, and it is the one most roof designs already account for by specifying a vapor retarder.

Air leakage

Air leakage is the larger one. Warm interior air carries vapor with it, and it moves through any hole it can find: an unsealed deck-to-wall joint, a gap at a curb, an open flute in a steel deck, a mechanical penetration, a joint in the deck material itself, an interior partition that is open to the plenum, a shaft or chase that terminates at the roof line. Stack effect pushes that air toward the roof at the top of the building, where the pressure difference is greatest and where the detailing is usually most interrupted. A continuous gap no one can see from either side can deliver more moisture into an assembly over a single heating season than diffusion through the entire field of the roof.

This is why a specified vapor retarder is not, by itself, proof that an assembly is protected. A sheet that was lapped but not sealed, or that stopped short of the perimeter, controls diffusion while leaving the air path open.

Where the dew point lands in the assembly

Vapor condenses when it reaches a surface below its dew point. In a conventional low-sloped assembly, the coldest surface interior air can reach is usually the underside of the membrane or the top of the insulation layer nearest the membrane. If air and vapor control below the insulation is not continuous, moist air arrives at that plane and gives up its water there.

The layering decides where that plane falls. Where insulation is split between above-deck and below-deck locations, or where batts sit in a cavity beneath the deck, the deck itself can end up on the cold side of most of the thermal resistance. In that arrangement the deck is a condensing surface — and it is also the structural element, the substrate everything is fastened to, and the one layer that cannot be replaced without taking the roof off.

The same logic explains why added insulation changes the behavior of an existing building. Heat that used to warm the deck no longer reaches it. The assembly is more efficient and the deck is colder, so an interior humidity load that was previously tolerated begins to condense.

What the damage looks like

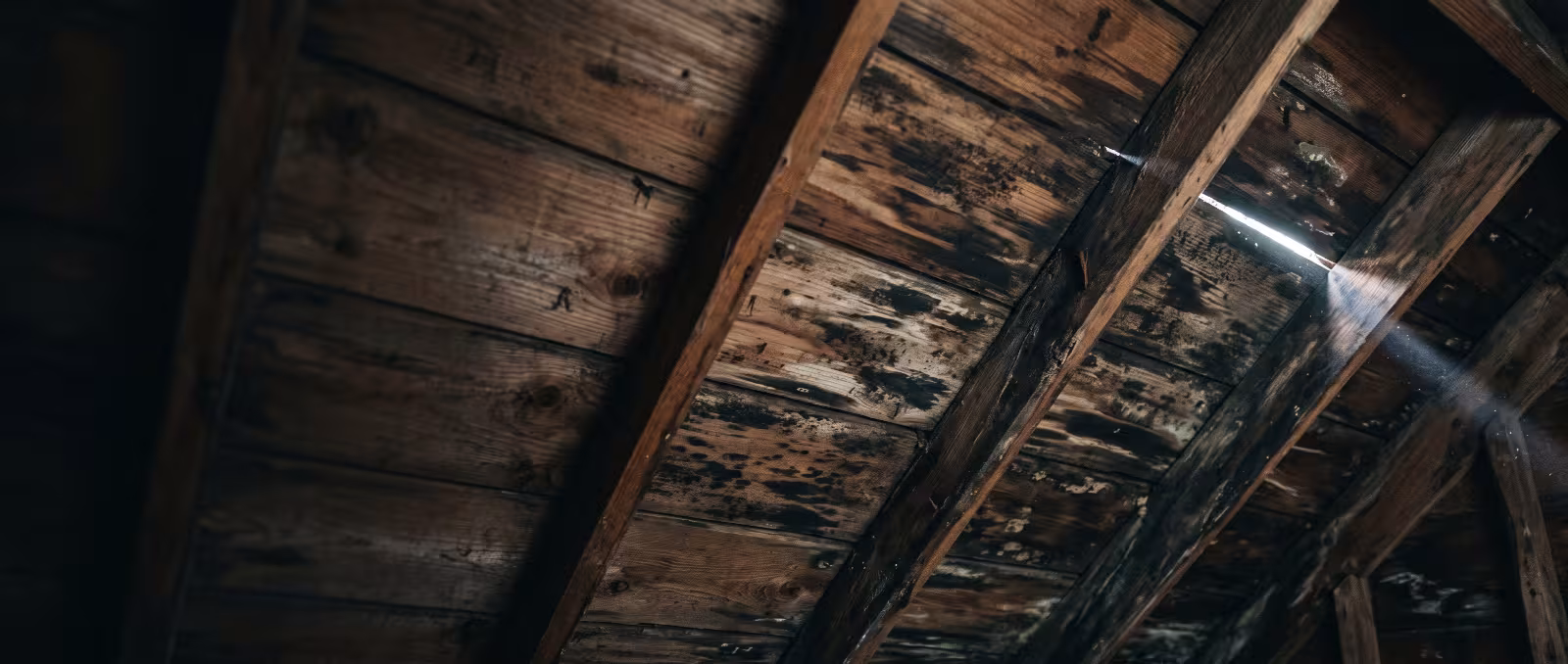

• Wood decking and nailers that are soft, punky or fungal at fastener lines and panel edges, with staining visible from below before any interior water shows up.
• Wood panel products that swell, lose edge integrity and no longer hold fasteners.
• Steel deck with rust blooming from the top flange down, often heaviest over humid interior areas rather than at the perimeter.
• Insulation saturated in patches rather than in a cone spreading from a puncture, so the wet pattern does not point back to a single entry point.
• Fastener corrosion and loss of pull-out resistance, which surfaces as a wind performance problem before it surfaces as a water problem.
• Gypsum and cementitious cover boards that have lost strength at the fastener, leaving the membrane attached to a substrate that no longer holds.
• Drips at interior locations during thaws or on sunny winter days, not during rain.

Why winter drips get misread as leaks

That last symptom is the one most often misread. A building that only drips when it warms up after a cold snap is releasing stored condensate, not leaking. Chasing it as a leak produces membrane repairs that change nothing, followed by a second round of repairs the following winter.

The distinction between water entering from outside and water generated inside is a threshold question, and it is worth settling before any repair scope is written — the same discipline that applies to sourcing leaks to the building interior. Timing, weather correlation and the distribution of wet material across the roof plane usually separate the two before anything is opened up.

Buildings that generate their own problem

Interior humidity load drives everything. Natatoriums, laundries, commercial kitchens, food and beverage processing, greenhouses, printing and paper operations, and buildings humidified for occupant comfort or for their contents all raise interior vapor pressure in winter. So do temporary conditions: a building being dried out after construction, or one where humidification was added long after the roof was designed.

Occupancy change is a common trigger. A roof assembly that performed adequately over a low-humidity warehouse may begin condensing when the space is converted to manufacturing, when process equipment is added, or when a suspended ceiling is removed and the plenum is opened to the occupied space. Building pressurization matters as much as humidity: a space held positive relative to outdoors pushes its moisture into the assembly rather than drawing dry air in.

How the condition is investigated

Confirming interstitial condensation means looking at the assembly rather than the surface. That typically involves reviewing the as-built layering and any available construction documents, mapping wet areas with moisture detection, observing the underside of the deck where it is accessible, and taking test cuts at representative locations to establish the actual sequence of materials and the actual condition of the deck, nailers and fasteners.

Interior conditions are part of the diagnosis, not background information. Temperature, relative humidity and pressure through the heating season, the operation of humidification and ventilation equipment, and the location of process loads all belong in the record. Where the question is whether a proposed assembly will dry or accumulate over time, hygrothermal modeling can study the layering, the vapor control location and the climate together before a design is committed. Where deterioration has already progressed and the cause is disputed, this is standard territory for a forensic roof investigation.

Designing the replacement so it does not recur

Once the mechanism is understood, the remedy is a design problem rather than a product problem. The recurring decisions are the location of the vapor retarder relative to the insulation, the continuity of the air barrier and how it ties into the wall air barrier at the perimeter, the proportion of insulation above the deck, the detailing at curbs, penetrations and expansion joints, and whether the interior humidity load itself can be reduced or better controlled.

Replacing a rotted deck and reinstalling the same layering reproduces the failure on a slower clock. Deck material behavior varies enough that the substrate deserves specific attention — the differences between panel products, for example, are covered in the roof deck series. Assembly-level decisions for a re-roof are the province of roof consulting, and the condition of the existing roof is documented through flat roof inspection.

Inspec inspects, tests, investigates and designs; we do not perform the repair work. If a low-sloped roof on one of your buildings is showing wet insulation, a deteriorating deck or drips that follow the weather rather than the rain, contact us to discuss an investigation.
