RCI Interface “Low-Rise Foam Notes from the Field”
Low-rise foam adhesive attaches roof insulation without fasteners. Field notes on substrate prep, dispensing, bead placement and checks that catch weak bonds.
Article by Don Kilpatrick
Read the full article (PDF)Background on this topic from Inspec
The attachment disappears the moment the board is set

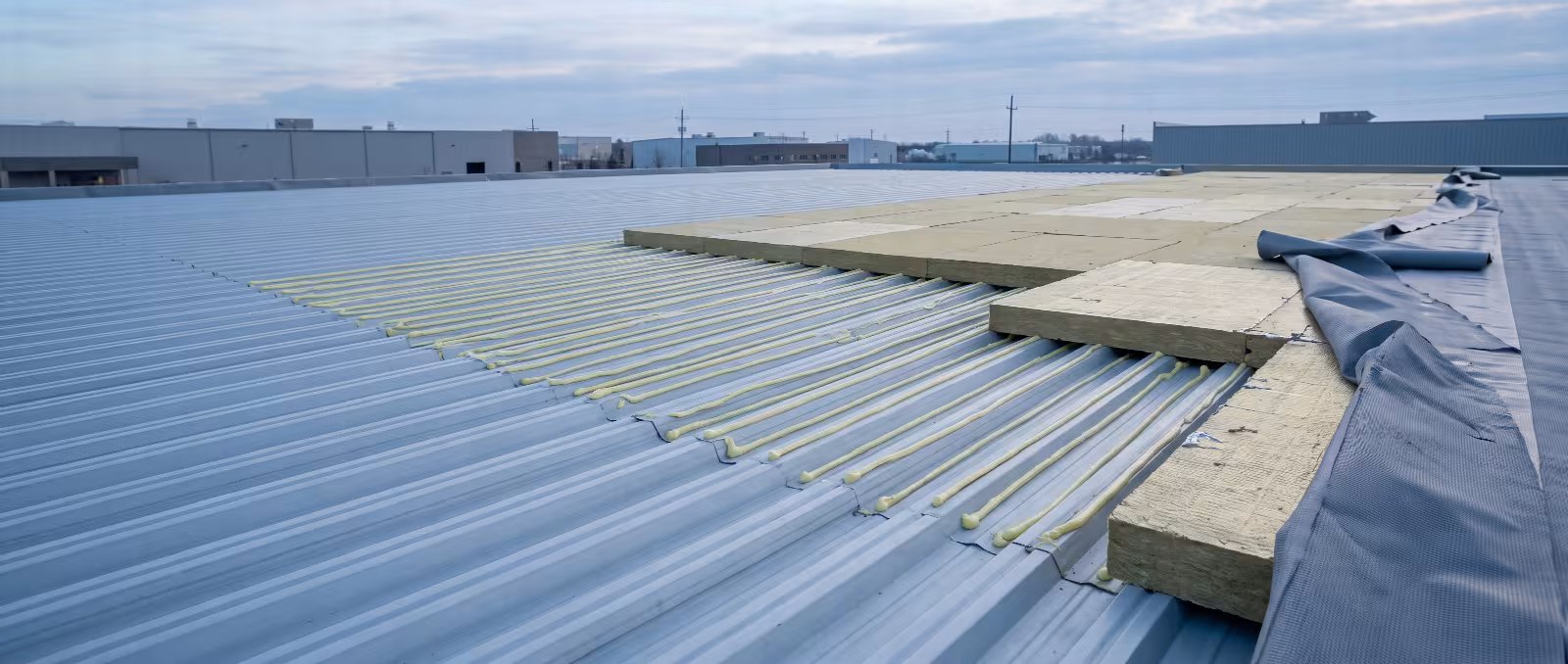

Low-rise polyurethane foam adhesive attaches insulation boards, coverboards and, in some assemblies, the membrane itself without putting a fastener through the deck. That is its appeal on decks that should not be penetrated, on occupied buildings where noise matters, and on assemblies where thermal bridging through plates is a design concern.
It also means the connection holding the roof down is hidden as soon as the next board goes on top of it. A fastener that missed a flute can often be found by feel or by probing. A bead that skinned over before the board was set into it leaves nothing behind to find. The notes below are about the short window in which that bond is either made or lost, and what is worth watching, measuring and writing down while it is open.
Substrate condition decides most of the outcome
Foam adhesive bonds to the surface it touches, not to the assembly underneath. Most of the problems we are called to look at trace back to what that surface was carrying when the bead was applied: dust from cutting and sweeping, loose granules or aggregate on a recover, frost, dew that has not burned off, form-release agents or curing compounds on cast-in-place concrete, or an existing coating whose own adhesion was never confirmed.
On a recover project the question is not only whether the adhesive will bond to the existing surface, but whether that existing surface is still bonded to what is below it. A sound bead under a board sitting on a delaminated layer has simply moved the failure plane down. Adhesion testing and test cuts carried out before the specification is written are worth more than any amount of watching afterward, because they change the assembly rather than the inspection report.
The equipment is part of the assembly
Bead quality is a dispensing question as much as a product question. Off-ratio material from a cartridge or hose that has not been purged produces foam that looks placed but never develops strength. Long hose runs, pressure drops, partially spent canisters and a nozzle that has begun to clog all change the bead that reaches the board while the cart looks like it is working normally.
Practical checks during the day: purge and discard into a waste container at startup and after any pause, look at the color and rise of that discarded material, confirm the dispensed bead width against the width the approved assembly was tested with, and watch for beads that vary in width across a single pass. Where canisters are conditioned in a heated enclosure, note when they come out of it, because a canister that has been sitting in a shaded corner since morning is no longer conditioned. Surface temperatures are worth taking at the point of work rather than once at the trailer; a parapet-shaded strip and a sunlit field area can be well apart on the same morning.
Placing the board, and the traffic that follows
The board has to be set into the beads while the foam is still rising and receptive, then walked or weighted so it beds into the adhesive rather than bridging over it. Boards set and then shifted to close a joint can tear a bond that was already forming. Where boards are staged on the roof ahead of the crew, the stack itself becomes a scheduling constraint, since adhesive should not be run out past the point boards can actually be placed.
Traffic afterward matters too. Loaded pallets, equipment and foot traffic over boards whose adhesive has not reached strength can break the bond without leaving a mark, and wind can lift a board that is bedded but not yet cured. Watching a few boards from bead to broom, and then returning to the same area later in the shift, tells more than a walk across the finished surface at the end of the day.
What belongs in the record
Observation notes on a foam-adhered roof are the only durable evidence of how the attachment was made. Useful entries include the area worked, adhesive lot or canister identification, surface and product temperatures with the time they were taken, the wind zone being worked and how its boundaries were marked on the roof, the bead layout observed, where boards were lifted and what the adhesive footprint looked like, and any interruption that left beads exposed. Photographs of lifted boards, with location noted, carry more weight later than photographs of completed areas.
How attachment problems show up later
Weak attachment rarely announces itself at completion. It presents months or seasons on as board movement and open joints, ridging telegraphing through the membrane, membrane flutter during wind events, stressed or opened seams, and fastener-free areas that sound hollow underfoot. By the time those appear, the investigation is destructive, sampling is limited to the openings made, and the remedy is a contractor's scope rather than an adjustment to the day's work.
Where this fits in a project
These observations come out of construction observation on foam-adhered assemblies and from forensic roof investigations that started with movement or leakage on a roof already in service. A related article covers low-rise foam over a hybrid deck, where the substrate itself changed across the building.
