Two assemblies that fail by different mechanisms

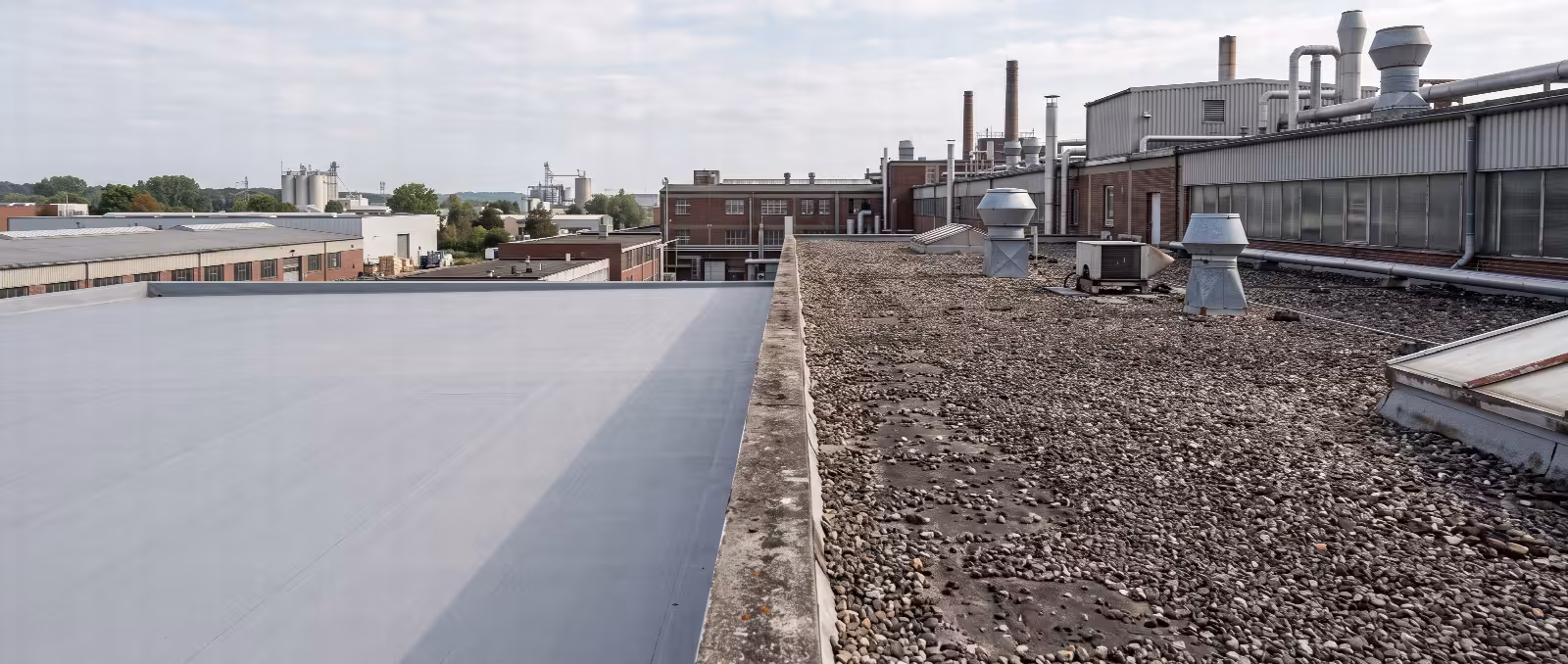

A built-up roof and a single-ply roof both keep water out of a building, but they do it by different means, and they come apart in different ways. The opening question is the same for either one — what is the membrane, how is it held down, and what is underneath it — but the evidence that answers it is not the same, and an analysis that treats the two as interchangeable will miss the conditions that actually govern remaining service life.

Built-up roofing: waterproofing distributed through the thickness

A built-up membrane is redundant by design: multiple plies of felt or fabric set in bitumen, surfaced with aggregate, a cap sheet or a coating. Because the waterproofing is spread through the thickness of the membrane, the questions concern the condition of that thickness. Interply voids, blisters, ridging over insulation joints, felt slippage on slope, starved or dry bitumen between plies and loss of surfacing that leaves bitumen exposed to ultraviolet all describe an assembly that is thinning out rather than one breached at a single point. Base flashings, usually the oldest and most stressed part of the assembly, are examined separately from the field.

Single-ply roofing: the sheet and the seams

A single-ply membrane has no redundancy in the field. The sheet is the waterproofing and the seams between sheets are the assembly. Analysis concentrates on seam condition and continuity, on the attachment method, and on transitions at curbs, penetrations, drains and perimeters, where terminations and sealants do work the field sheet never has to do. Punctures, dimensional movement pulling the sheet at inside and outside corners, abraded or exposed reinforcement, and weathering that shows as chalking or crazing each lead in a different direction.

Reading the record before reading the roof

Record drawings, prior repair invoices, warranty paperwork and earlier reports describe what the roof was meant to be. They are worth reviewing first, because they shape where field work is concentrated — particularly on roofs that have been recovered, where a single-ply sheet may sit over a built-up assembly that still contains the original insulation and its moisture. Where the documents and the roof disagree, the roof governs. Dividing the area into zones by age, assembly and drainage pattern before the site visit keeps sampling representative instead of convenient.

Where the deck changes the conversation

Membrane condition sets the tone of a report, but deck type often sets the options. Fastener pullout values, the practicality of adhered attachment, tolerance for trapped moisture, and whether an overlay is even feasible all depend on what the membrane is anchored to — steel, concrete, wood, gypsum, lightweight insulating concrete or a combination left behind by earlier work, as happens on buildings with hybrid decking. Exposing the top of the deck at inspection openings is frequently the most useful thing a cut does.

Details, drainage and the perimeter

Drains, scuppers, overflow provisions, curb heights, pipe supports, equipment traffic and edge metal are common to both systems and are read differently on each. Standing water accelerates surfacing loss and interply degradation on a built-up roof; on a single-ply roof it concentrates dirt and traffic damage along seams and loads the attachment at low points. Flashing heights, counterflashing condition and sealant at terminations deserve the same attention on both, because a membrane in serviceable condition can still leak through a detail that was never right.

Repair options are membrane-specific

Identifying the membrane is not academic. Patching a built-up roof calls for compatible bitumen and plies and a surface prepared for them. Repairing a single-ply roof requires knowing the sheet chemistry, since weldable and non-weldable sheets behave differently, aged sheets accept welds unpredictably, and adhesives and flashing accessories are not interchangeable between families. Whether a compatible sheet is still obtainable can decide between localized repair and a larger scope. Where moisture mapping is needed to size that scope, moisture detection methods are chosen to suit the surfacing and assembly rather than applied uniformly.

Turning findings into a decision

The point of the analysis is a decision an owner can act on: repair the defects and keep the roof in service, replace where moisture is confined, or plan full replacement and budget for it. Because Inspec does not install roofing or sell materials, the recommendation follows the findings rather than a product line. Observations, opening locations, photographs and survey results are documented in a written report, which becomes the basis for design and bidding if replacement is warranted and the baseline for comparison through a building envelope management system if it is not.
