Optimized Design of Combined Disciplines: Steep-Sloped Roofing and Exterior-Wall Cladding
Article by Donald Kilpatrick
Read the full article (PDF)Background on this topic from Inspec

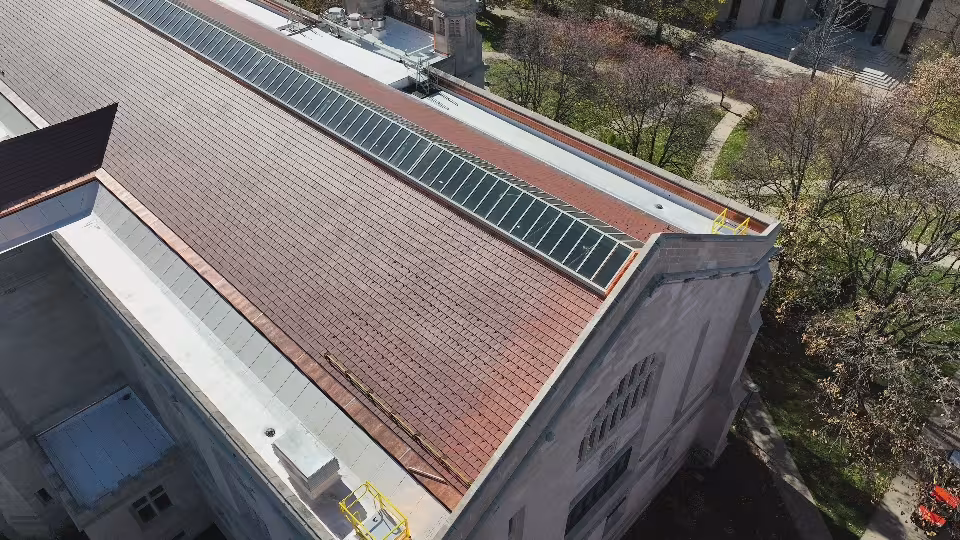

Steep-slope roofing systems require more than durable tiles and flashings—they demand coordination with exterior wall cladding. This article explores how historic buildings like the University of Chicago combine roofing and masonry strategies for long-term performance, especially at complex transitions above the roofline.
Two assemblies, one water path
A steep-sloped roof and an exterior wall are usually drawn by different hands, specified in different sections, priced by different trades and installed weeks or months apart. Water does not recognize any of those boundaries. It runs down the roof surface, reaches a wall, and continues down whatever surface is presented to it. Wherever a sloped roof plane dies into a vertical wall — at a headwall, a sidewall, a rake, a dormer cheek, a chimney or a lower roof meeting an upper storey — the two assemblies have to behave as a single drainage system or the joint becomes the building's most reliable leak.
The design problem is not usually the roofing and it is not usually the cladding. Each is often competent on its own terms. The problem is the overlap: the strip of construction that belongs to both scopes and therefore, in practice, to neither.
Making the drainage planes agree
Steep-sloped roofing is a shedding assembly. Cladding over a drainage cavity is also a shedding assembly, but its working surface is the water-resistive barrier behind the finish, not the finish itself. The transition only works when the designer decides, explicitly, which plane carries water at the joint and how the upstream layer laps over the downstream one.
The order of layers
Shingle-lap logic has to be carried through the transition in the right sequence: wall water-resistive barrier over the vertical leg of the step or apron flashing, flashing over the underlayment, underlayment over the roofing where the roofing runs beneath. If any one lap runs backwards, the assembly delivers water into the wall cavity rather than out onto the roof. On a drawing this is a single detail; on site it is three trades performing in a fixed order.
Air barrier and insulation continuity
The same joint carries the air barrier and the thermal layer. A sloped roof insulated at the ceiling plane meets a wall insulated in or outside the studs, and the two rarely align without a deliberate transition. Where they do not connect, the result is air leakage, condensation potential on the concealed side of the joint, and warm air reaching the roof deck near the eave — which is where ice dams begin. Hygrothermal modeling can be useful when a proposed transition assembly puts a vapour-sensitive material in an uncertain position.
The details that decide the outcome
- Sidewall (step) flashing — individual pieces woven with each course, each with adequate vertical and horizontal legs, and never substituted with a continuous strip of metal or a bead of sealant.
- Headwall flashing — an apron with a hemmed edge, a defined termination behind the wall's water-resistive barrier, and a way to relieve water that arrives from above.
- Roof-to-wall terminations at the base of cladding — a clearance between the finish and the roof surface so the cladding is not standing in snowmelt, ice or debris.
- Cavity drainage — the wall cavity above the roof must discharge somewhere, and that somewhere is onto the roof surface, above the flashing, not behind it.
- Kickouts and terminations at the eave — the point where the roof edge passes a wall corner and concentrated flow has to be thrown clear of the cladding.
- Penetrations near the joint — vents, gas terminations, hose bibs and light fixtures placed within the transition zone, where there is no room left to flash them.
Scope, sequencing and the construction documents
Most transition failures we investigate are traceable to the documents rather than to workmanship. The detail exists in the roofing section and again, differently, in the cladding section. Or it exists in neither, with each specification assuming the other trade will supply the flashing. Coordinated building enclosure design resolves this before bid: one detail, one drawing, one section that names who furnishes each piece and in what order it goes on. Sequencing is part of the design, not a field problem to be discovered later.
Verifying the joint while it is still open
These transitions are concealed by the finish cladding and are expensive to reopen. That argues for confirming them at the point of installation rather than at substantial completion. A mock-up of the actual condition, reviewed with both trades present, settles arguments cheaply. Periodic construction observation at the moments the flashings go on catches reversed laps while they can still be corrected, and air and water infiltration testing can be applied to a representative transition before the rest of the elevation is clad.
How Inspec works on these transitions
Inspec is a consulting engineering and architecture firm — we design, observe, test and report, and we do not perform the roofing or cladding work. On projects where both disciplines meet, our roof consulting and exterior wall and window consulting staff work from the same set of details so the joint is authored once rather than twice. On existing buildings with recurring leaks at a roof-to-wall condition, the same combined view applies to diagnosis. Our offices are in Chicago, Milwaukee and Minneapolis; contact us to discuss a project.
