Two roofs, same membrane, very different endings

Put the same low-slope membrane on two buildings in the same city, in the same year, with the same installer, and the two roofs will not reach the same age. One is still watertight and serviceable well past its twentieth winter. The other is torn off early, usually after a run of leak calls nobody could trace. The membrane is rarely what separated them. What separated them was how water left the roof, how much moisture got into the assembly and stayed there, how much abuse the surface absorbed after occupancy, and whether anyone looked at the roof between emergencies.

For a facilities engineer that is useful news. Most of what decides service life is observable, and several of the decisive factors are still correctable at year eight or year twelve.

The ceiling is set before occupancy

Every roof begins with a plausible maximum life, fixed by its design and its installation. Good maintenance protects that ceiling. It cannot raise it. Three sets of decisions do most of the fixing.

Drainage and slope

Low-slope does not mean no slope. A roof that sheds fully after a storm ages differently from one that holds water at drains, behind curbs or in long depressions between framing lines. Undersized or badly located drains, crickets value-engineered out of the design, deflection that the slope never anticipated, and later equipment installed across a flow path all produce the same result. In a climate that cycles through freezing repeatedly each winter, as buildings in Chicago, Milwaukee and Minneapolis do, that retained water concentrates stress exactly where seams and flashings are weakest. Where water sits two days after rain is one of the cheapest diagnostics available to a facility team.

The deck and what sits on it

The deck governs how the assembly responds to moisture and movement. Steel, concrete, wood, and the various plank and panel systems each have their own failure behavior when water reaches them, and each imposes different limits on fastening, adhesion and repair. A roof over a deck that conceals moisture well can look sound from above long after the insulation has stopped performing. Knowing what is under the membrane changes both the inspection method and the eventual replacement scope. Our Roof Decks A to Z series works through the deck types one at a time.

Terminations, penetrations and transitions

Field membrane seldom fails first. Perimeters, parapet junctions, curbs, pipe penetrations, expansion joints and tie-ins to adjacent walls concentrate movement and workmanship risk. A roof reaches its third decade largely because those details were detailed correctly, installed as detailed, and then left alone. Detailing decisions of this kind are examined in Design Issues: The Devil in the Details.

What the occupied building spends that life on

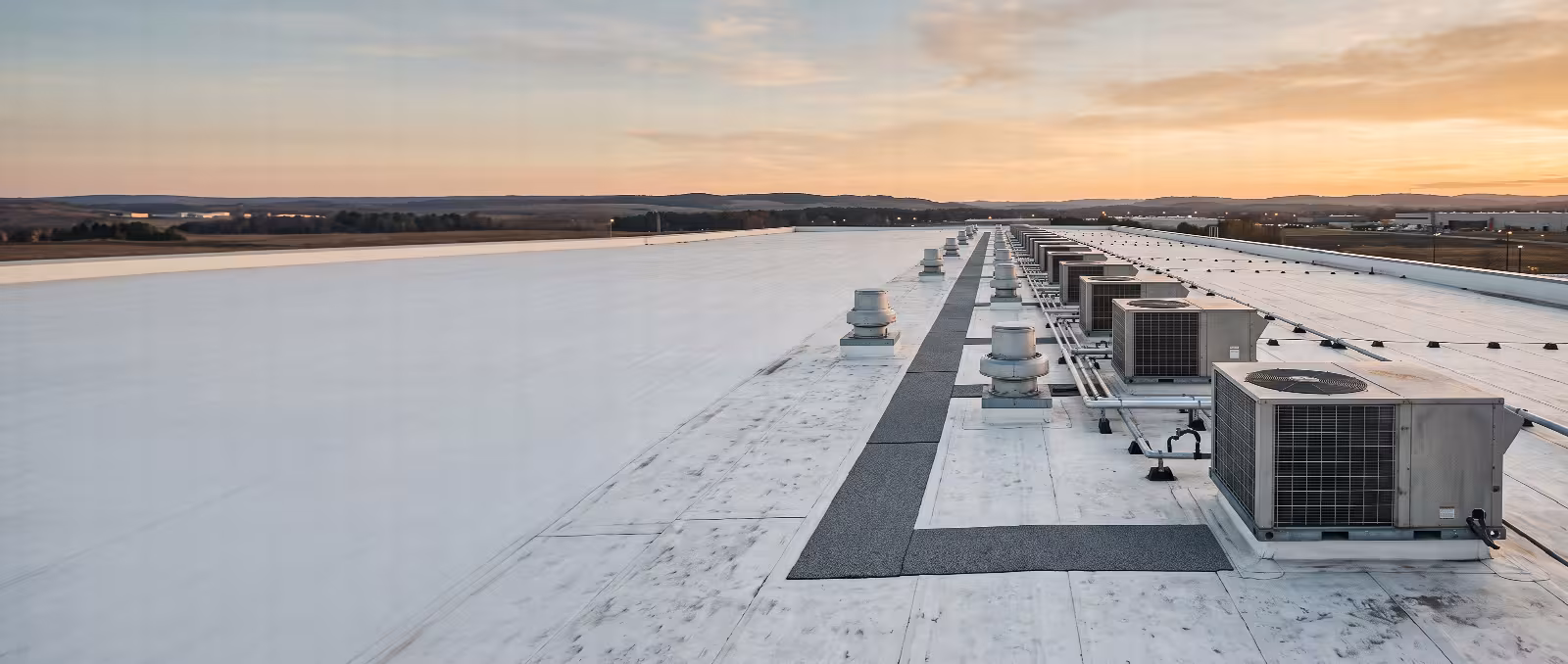

Roofs age fastest where people go. Service paths to rooftop units, antenna and satellite installations, new gas and conduit runs on blocks, fall-protection and window-washing anchors, and grease exhaust all add traffic, penetrations and contamination the original design never contemplated. Very often the leak reported in the tenth year sits within a few feet of equipment installed in the eighth.

The controls that protect a roof at this stage are organizational rather than technical:

• Make rooftop access conditional on advance notice, so someone knows who is up there and why
• Review proposed alterations before the trade mobilizes, including how new equipment will be supported, flashed and drained around
• Write roof protection and restoration obligations into mechanical, telecom and window-washing contracts
• Run walkway protection along the routes crews actually use, not the routes the drawings assumed
• Treat drain, strainer and scupper clearing as scheduled maintenance tied to leaf fall and storm season

None of that requires an engineer. It requires that somebody in the organization owns the roof.

Moisture inside the assembly is the quiet clock

Water that enters an assembly and cannot dry is the mechanism behind most premature replacements. Wet insulation loses thermal value, corrodes fasteners and steel decking, deteriorates facers and adhesion, and can travel well away from the entry point before anything shows on a ceiling. By the time an interior stain appears, the wet area is usually larger than the owner expects, and the roof's remaining life has already been spent whether or not the surface looks tired.

Where the question is whether an assembly can dry at all under a given climate and interior condition, hygrothermal modeling puts numbers on drying potential instead of leaving it to judgment. When leaks resist diagnosis, a structured forensic roof investigation works backward from the entry point rather than guessing at a patch.

Measuring what is actually left

Past roughly the midpoint of a roof's expected life, the useful question stops being how old it is and becomes how much of it is still dry and sound. Answering that takes work above and below the membrane: survey methods that distinguish wet areas from dry across the whole field, test cuts and cores that confirm what the survey indicates, and examination of deck condition, insulation thickness and attachment. Moisture detection on an aging roof produces something an age estimate cannot — a map. That map is what separates a defensible repair scope from a replacement recommendation, and what lets a capital plan name a year instead of a guess.

Managing the last third of the service life

Roofs that pass twenty years usually belong to owners who stopped treating the roof as an emergency and started treating it as an asset with a schedule. In practice that means periodic documented inspections, a maintenance budget held separately from the leak-response budget, correction of small defects while they are still small, and a capital reserve funded before the roof is failing rather than after.

It also means that the information survives staff turnover. Construction documents, warranty terms, survey results and alteration approvals are worth little if the next facility manager cannot find them. Tracking condition across a portfolio over time is what a facility asset management program and a building envelope management system are for; together they turn scattered service calls into a defensible replacement sequence.

Where an engineer fits

Inspec is a consulting engineering and architecture firm. We inspect, test, investigate, design and advise on low-slope roofs; we do not perform the repairs or replacement we recommend, and we hold no interest in any product line. On an aging roof that means an independent read of what is left in the assembly, a written report of findings, and, where replacement is warranted, construction documents and observation during the work. Roof consulting and flat roof inspection describe how those engagements are structured. If you have an aging low-slope roof and no current baseline, contact us to discuss an assessment.
