Facilities Engineering "Be Proactive to Find Problems With Your Building Envelope"

Background on this topic from Inspec

The interior is the last place a problem shows up

By the time a stain appears on a ceiling tile or a tenant reports a damp carpet, water has already found a path through the enclosure, travelled along a deck or a stud cavity, and saturated materials you cannot see. The visible symptom is the end of the story, not the beginning. Facilities teams who wait for interior evidence are always responding to a condition that has been developing for some time and is no longer cheap or simple to correct.

The advantage in-house staff have is access. Nobody else is on the property every day. A facilities engineer who knows what a maturing problem looks like on a roof surface or a wall face can catch it while it is still a maintenance item rather than a capital project — and can put it in front of ownership with enough documentation to get it funded.

What staff can observe without specialized equipment

None of the following requires testing apparatus or a report. It requires someone walking the building with a phone camera and knowing what deserves a second look.

Roof areas

• Ponding that persists well after rain has stopped, especially near drains and at deck low points
• Open, fishmouthed or lifted seams and laps in the membrane
• Deteriorated or missing sealant at penetrations, curbs, pitch pans and equipment supports
• Base flashing that has slipped, split or pulled away from the parapet or wall
• Punctures and abrasion in traffic paths to rooftop equipment
• Blocked drains, strainers and scuppers; debris accumulating in valleys
• Soft or springy spots underfoot, which can indicate wet insulation or a compromised deck

Walls, windows and joints

• Cracked, spalled or displaced masonry, particularly at the top of the wall and around openings
• Deteriorated mortar joints, and sealant joints that have hardened, split or lost adhesion

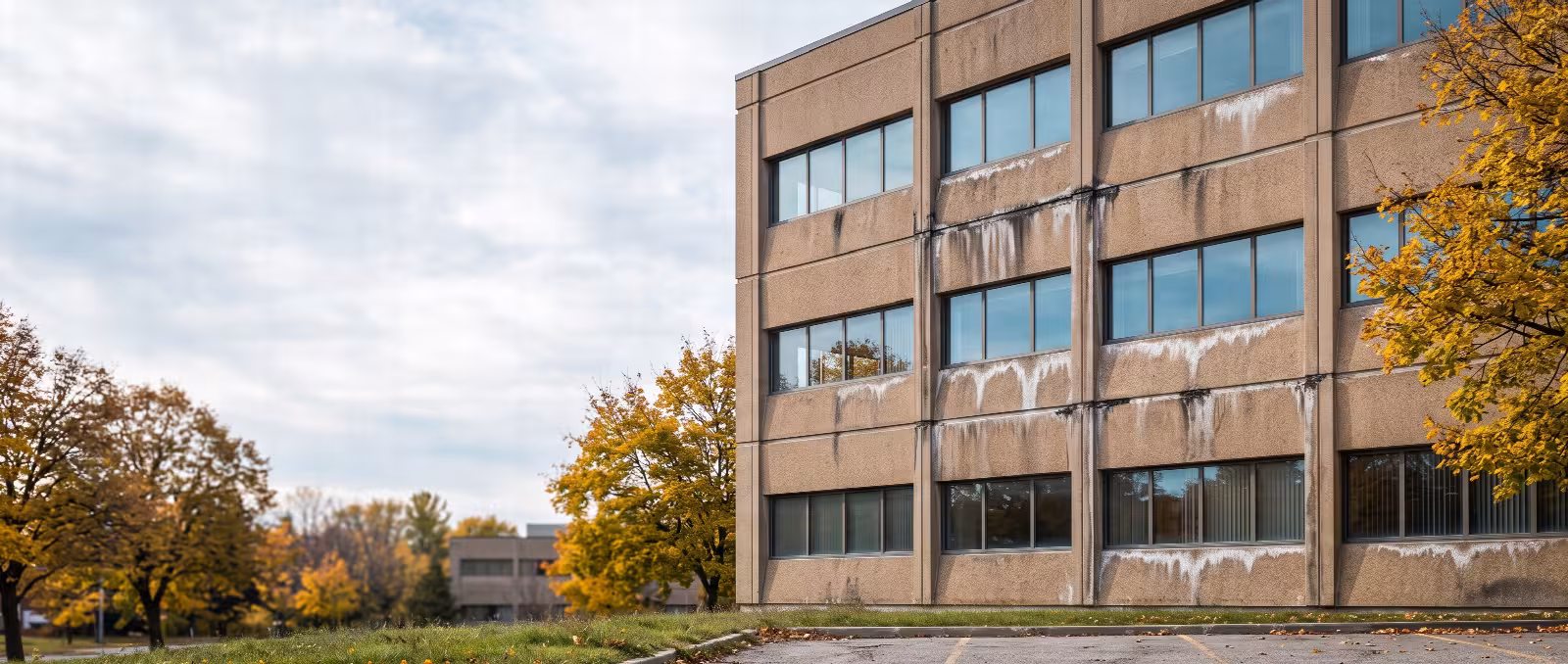

• Efflorescence, staining or persistent damp patches on the exterior face
• Rust staining, which can signal corroding anchors, lintels or shelf angles
• Weeps and vents that are painted, sealed or packed with mortar
• Perimeter sealant failures at window and door frames, and fogging between insulated glass panes
• Sills and copings that have lost their slope or their drip edge

At grade and inside

• Downspouts discharging against the building rather than away from it, and grade that slopes back toward the wall
• Damp or efflorescing foundation walls, and staining at the base of the wall inside
• Musty odours in stairwells, storage rooms and other spaces nobody visits often
• Peeling paint, corroded fasteners or blistered finishes on the inside face of exterior walls

Recording observations so they are worth something later

An observation that lives only in someone's memory cannot be trended, budgeted or defended. Photograph each condition with something in frame for scale, note the elevation or roof area, note the date, and note the weather. A recurring stain that appears only after wind-driven rain from the southwest is a very different investigation than one that appears in every rainfall — and the difference is only visible if somebody wrote it down both times.

Keep the record in one place rather than in individual work orders. When the same joint has been resealed three times, that history is the argument for a real repair. Owners with several properties often formalise this in a building envelope management system so that conditions, photographs and repair history stay attached to the building rather than to whoever happened to be on shift.

Knowing when to stop looking and call an engineer

Staff observation has a natural limit. It tells you where water is showing up. It rarely tells you where water is getting in, because the two are often on different elevations and sometimes on different floors. Escalate when:

• The leak recurs after repair, or moves
• The path is not obvious — the entry point cannot be identified from the interior evidence
• There are structural indications: displaced masonry, corroding steel, deflection, cracking that is growing
• The condition is widespread rather than local, which usually points to a design or original-construction issue rather than wear
• You are being asked to budget for replacement and need to know what is actually left in the assembly

At that point the work becomes diagnostic. Sourcing a leak reliably means reproducing it under controlled conditions, section by section, rather than guessing — the reasoning behind that approach is set out in our article on replicating and sourcing leaks to the interior of buildings. Where the symptom is on a wall or at glazing, a facade leak investigation narrows the source before anyone specifies a repair.

Turning findings into a funded plan

Facilities teams rarely lose the technical argument. They lose the budget argument, because a list of complaints does not compete well against other capital requests. What competes is a documented set of conditions, each with a photograph, a probable cause, a consequence if deferred, and a place in a sequence.

That is the point at which a facility condition assessment earns its cost: it converts what your staff has been seeing into an independent, engineered evaluation of the enclosure that ownership can act on. For portfolios, a facility asset management program extends the same logic across buildings, so repairs are scheduled against condition rather than against whichever roof leaked most recently.

Build it into the calendar

The habit matters more than the checklist. Walk the roof and the exterior at predictable points in the year — after the freeze-thaw season, before the wet season, and after any severe weather event or rooftop equipment work. Walk it with the same route each time so changes stand out. Photograph the same conditions from the same positions.

Inspec works with owners, property managers and facilities teams from offices in Chicago, Milwaukee and Minneapolis. We inspect, test, investigate and design; we do not perform the repairs we recommend. If your walkthroughs are turning up conditions you cannot resolve internally, contact us to discuss what the next step should be.
