Why phenolic insulation still matters to building owners

Phenolic foam is a rigid, closed-cell thermoset board made from phenol-formaldehyde resin. It was specified in North American low-slope roof assemblies during the 1980s because it offered a high thermal resistance per inch of thickness along with favorable flame-spread and smoke-development characteristics. Boards were typically faced and installed much like other rigid roof insulations, which is part of the reason they can be difficult to distinguish from adjacent materials decades later.

Production of phenolic board for North American low-slope roofing ended in the early 1990s after a pattern of steel deck corrosion was traced back to the insulation. The boards, however, did not leave the building stock. Assemblies installed before that point are still in service, often buried under one or more subsequent roof coverings, and the consequences show up when a roof is opened for reroofing or when a leak investigation reaches the deck.

The corrosion mechanism, in plain terms

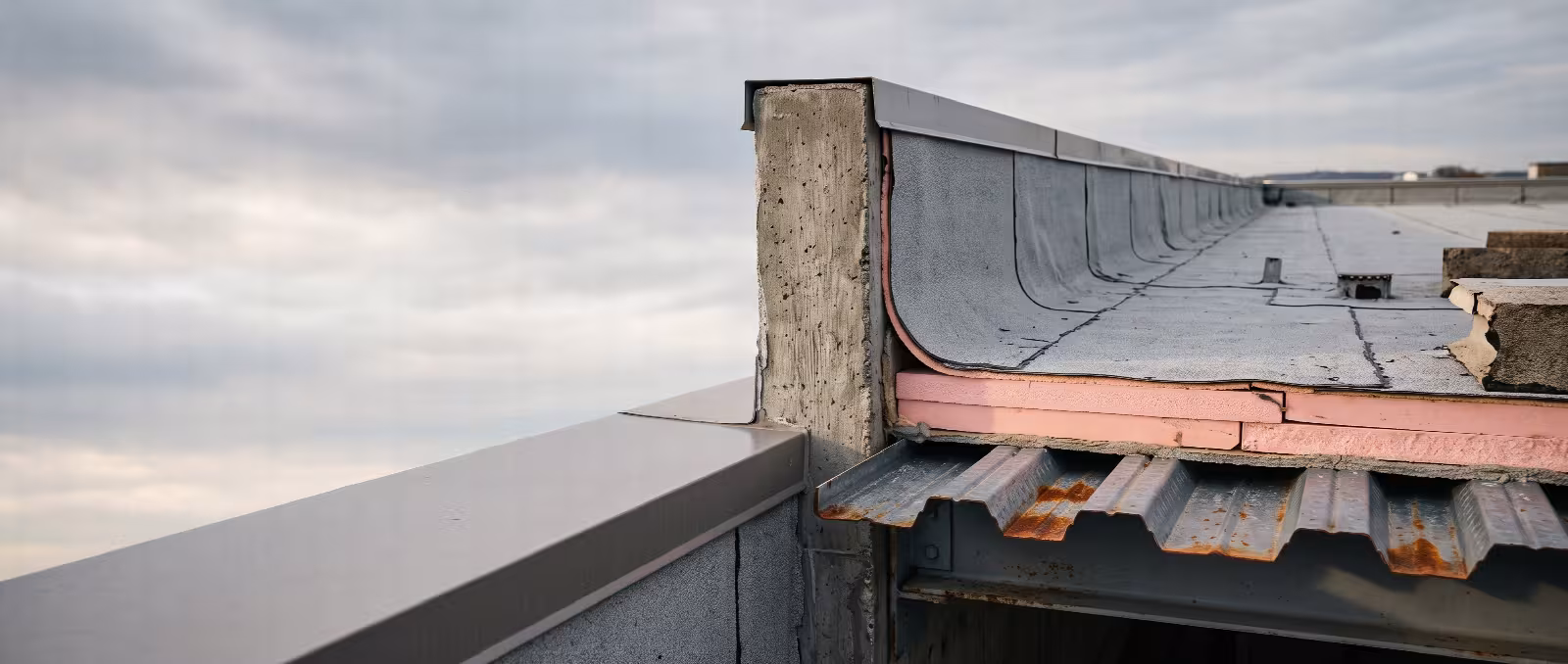

The concern is not the foam by itself but the foam in the presence of moisture. When water enters the assembly, acidic constituents can be released and carried to the metal below, attacking galvanizing and then the base steel. Corrosion tends to concentrate where water collects and lingers: low areas, laps, fastener penetrations, and the flutes of the deck. Because the process happens between the membrane above and the deck below, it can advance for years with no visible signal from either side.

Steel deck is not the only metal in the path. Fasteners, plates, and metal accessories embedded in or adjacent to the insulation are subject to the same exposure, and loss of fastener shank or plate section changes the uplift performance of the assembly whether or not the deck itself has thinned.

What field observation actually involves

Confirming a phenolic assembly is a physical exercise, not a documentary one. Original specifications and roofing records are useful starting points, but they are frequently incomplete or contradicted by what is in the roof. Useful observations include:

Test cuts through the full assembly, recording each layer, its thickness, condition, and attachment.
Observation of the deck from below, where ceilings and mechanical space allow, looking for rust staining, flaking galvanizing, perforation, and stained or bowed deck flutes.
Correlation of interior staining and known leak history with the areas of deck deterioration found.
Review of drainage patterns and ponding areas, since these often align with the worst deck conditions.

Where deterioration is found, the question of remaining capacity is a structural one and belongs to a structural engineer. The enclosure question is different: how much deck must be replaced, how the new assembly will be attached, and how the work will be sequenced over occupied space. Those answers belong in the construction documents rather than in a change order, which is why forensic roof investigation ahead of design tends to be the cheaper path.

Phenolic products in current wall assemblies

Phenolic boards remain available for other applications, including wall and cavity insulation, rainscreen backup, and pipe and duct insulation. Current-generation products are formulated differently from the 1980s roof boards, and the corrosion history of one should not be read directly onto the other. What it should prompt is verification: current manufacturer data, current test reports, the compatibility of the board with the metals, membranes, and adhesives it will contact, and the moisture conditions the board will actually see in that wall.

That last point is the one most often skipped. A high R-value per inch is attractive when wall thickness is constrained, but insulation position changes where condensation occurs in the assembly. Hygrothermal modeling is the tool for testing that question before the wall is built rather than after.

What to do with an older roof you have not opened

If a low-slope roof over steel deck dates from the 1980s and has not been fully removed since, the assembly composition is worth confirming before it drives a capital plan. A reroofing budget built on an assumption of sound deck, on a roof that turns out to have widespread section loss, is not a budget. Establishing deck condition during roof consulting work, and carrying appropriate unit prices for deck replacement into the bid documents, keeps the contingency where the owner controls it.

Inspec inspects, tests, and documents existing roof assemblies and prepares the design and bidding documents for their replacement. We do not perform the repair work. To discuss an assembly you suspect may contain phenolic insulation, contact our Chicago, Milwaukee, or Minneapolis office.

This article was originally published in RCI Interface.

Read the full article (PDF)

Common questions

Is phenolic insulation still used in roofs?

Phenolic foam roof insulation was withdrawn from the North American market after the corrosion and dimensional-stability problems reported in assemblies from the late 1980s and early 1990s. Phenolic boards are still manufactured today for other applications and other markets, under different formulations. Any specification of one should be evaluated for moisture behavior within the specific assembly, not on R-value alone.

How do I know whether my roof has phenolic insulation?

Original construction documents and submittals are the first place to look, but they are often incomplete or superseded by later work. Confirmation comes from test cuts and cores that expose the insulation, its facers, and the deck beneath. That same investigation lets us check for trapped moisture and for corrosion or section loss in a steel deck.

Why does phenolic insulation cause steel deck corrosion?

The corrosion reported in those assemblies was moisture-driven. When water entered the insulation layer, acidic byproducts associated with the resin chemistry were implicated in accelerated attack on steel decks and fasteners in contact with the board. A dry assembly may show little distress, which is why moisture mapping and direct deck inspection matter more than surface appearance.

Can a new roof simply be installed over existing phenolic insulation?

Not without verifying what is underneath. A recover leaves any wet insulation and any corroded deck in place, and adds load to a structure whose remaining capacity is unknown. We assess insulation moisture and deck condition first, then advise whether recover, partial replacement, or full tear-off is the defensible option for that roof.

Is phenolic insulation the same thing as polyisocyanurate?

No. Both are rigid foam boards used in roof assemblies, but they are different chemistries with different histories. Polyisocyanurate is the common board in current North American low-slope roofing. Phenolic board in a roof usually indicates 1980s-era construction. Visual identification from a test cut is not always conclusive, so record the full assembly rather than a single layer.

Can phenolic insulation damage anything besides the steel deck?

Yes. Fasteners, stress plates, and metal accessories sitting in or against wet phenolic foam are exposed to the same conditions as the deck. Loss of fastener or plate section affects the attachment of the assembly independently of deck thickness, so uplift resistance should be evaluated rather than assumed when an older assembly is being reused in any way.

Where else in a building might phenolic insulation be found?

Beyond low-slope roofs, phenolic boards have been used in wall cavities, as rainscreen backup insulation, and in pipe and duct insulation. Those applications involve different products, different formulations, and different moisture exposure. Finding phenolic board in one location in a building does not tell you what is in the roof, or the reverse.

How should deck deterioration be handled in reroofing documents?

Define the observed conditions, identify the areas of known deterioration on the drawings, and carry unit prices for additional deck replacement so that quantities discovered during tear-off are priced in advance rather than negotiated. Coordination with a structural engineer establishes what capacity remains and what replacement is required before the documents are issued for bid.
